Direct-Fit, Vandal-Resistant Pole Mount Bracket for Fixed Bullet and Box Cameras A low-profile, robust pole mounting bracket engineered to secure outdoor bullet, fixed box, and thermal network cameras directly to columns, posts, or structural beams. Featuring an impact-resistant IK10 rating and a marine-grade NEMA 4X corrosion finish, this compact adapter utilizes heavy-duty stainless steel bands to deliver an exceptionally stable, cost-efficient installation with zero need for extra wall arms or pendant accessories.
Cost-Effective Structural Clamping with a Low-Profile Footprint

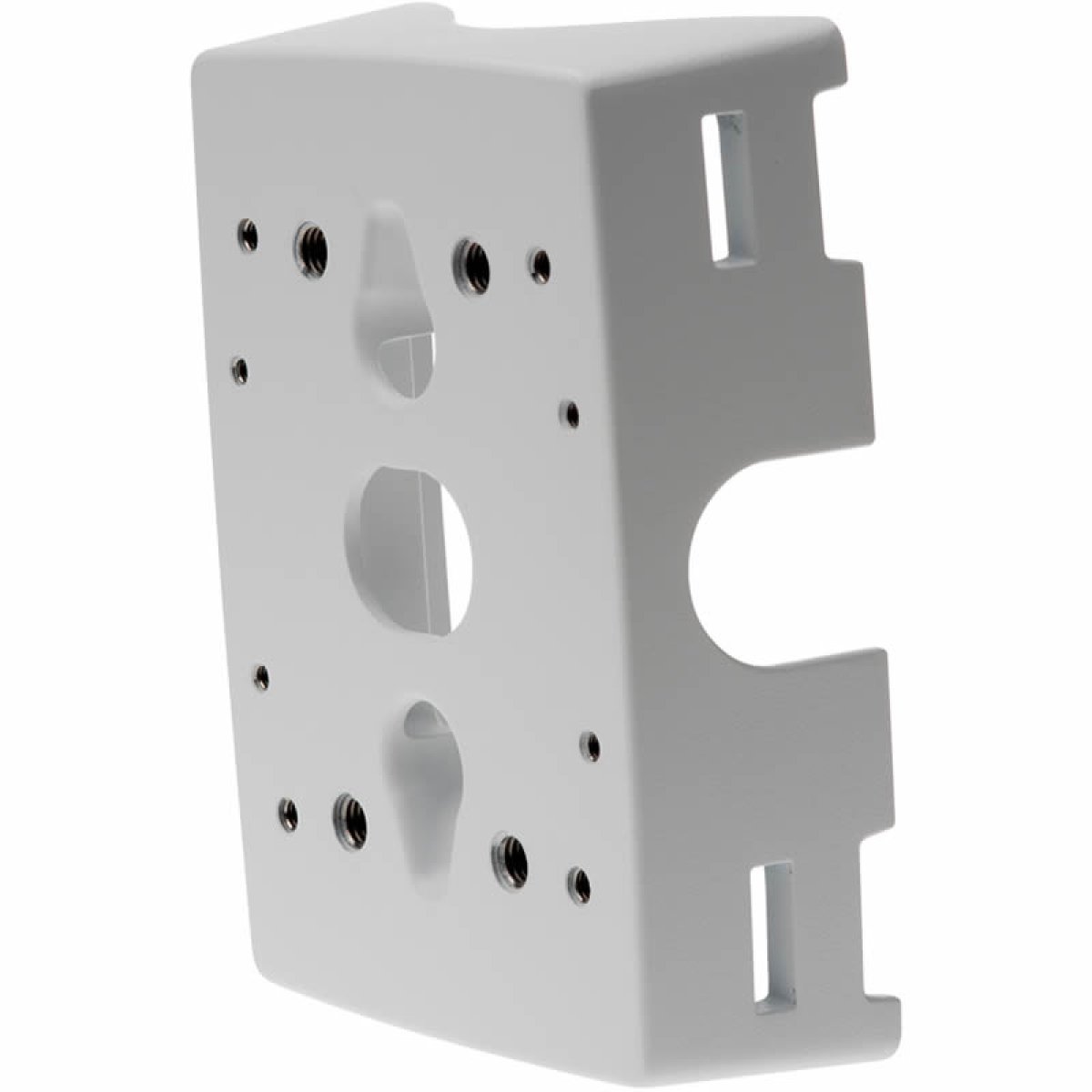

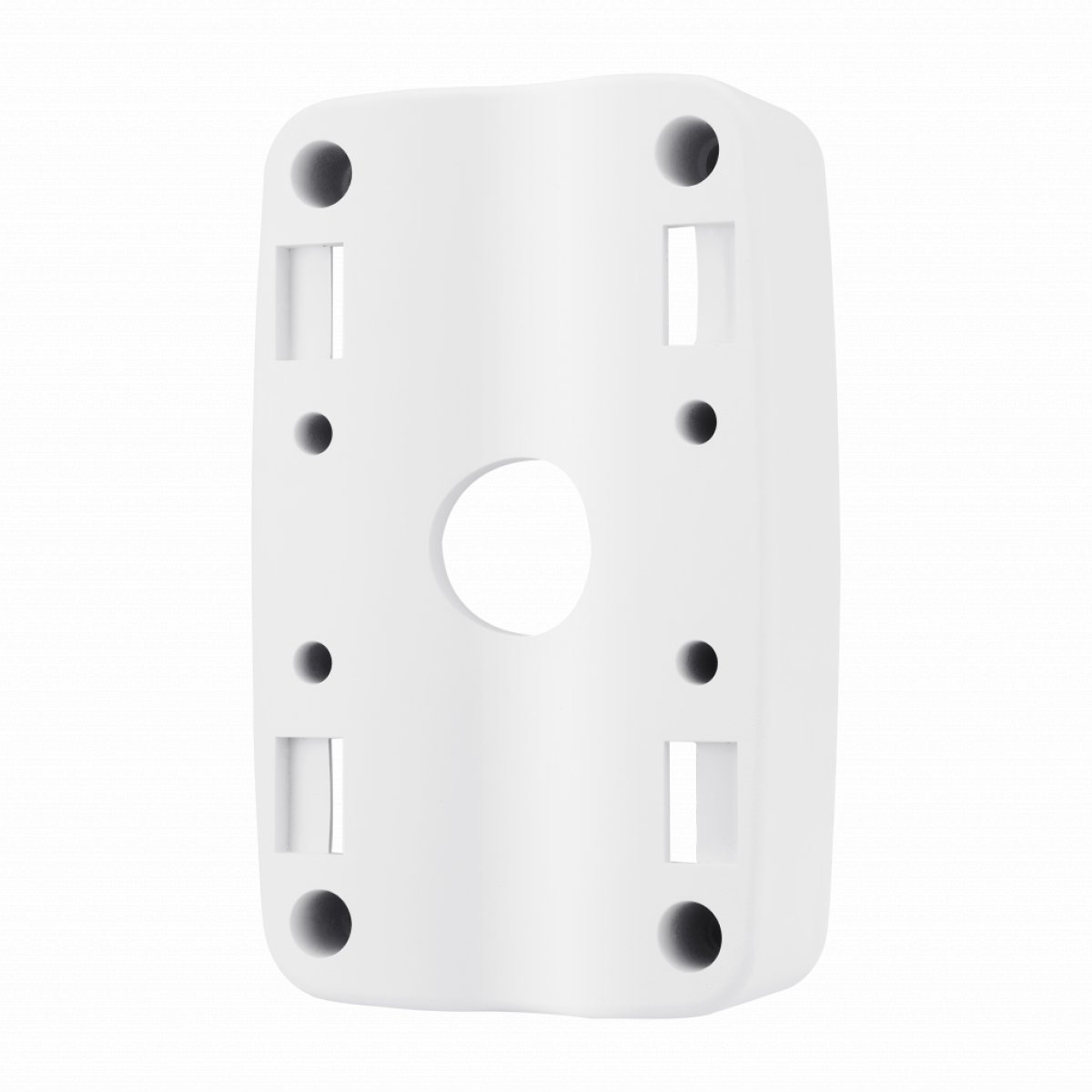

Streamline your outdoor infrastructure setups while lowering accessory costs. Our Premium T91A47 Pole Mount Bracket provides a direct, ultra-stable structural interface for fixed bullet and outdoor box cameras without the added bulk or expense of standard extension arms.
By bolting directly to the back of the camera's base or conduit box, this bracket wraps flush against circular profiles. It eliminates mechanical leverage points that vandals could exploit, making it an incredibly secure choice for low-altitude or high-traffic perimeters. Its tight-to-the-pole footprint also helps reduce camera shaking caused by high wind velocities, keeping your field of view crisp and stable.
Key Performance Features
Direct-to-Camera Integration: Fits flush against the rear footprint of compatible bullet enclosures and fixed housings, completely bypassing the need for separate wall brackets or hanging pendant kits.

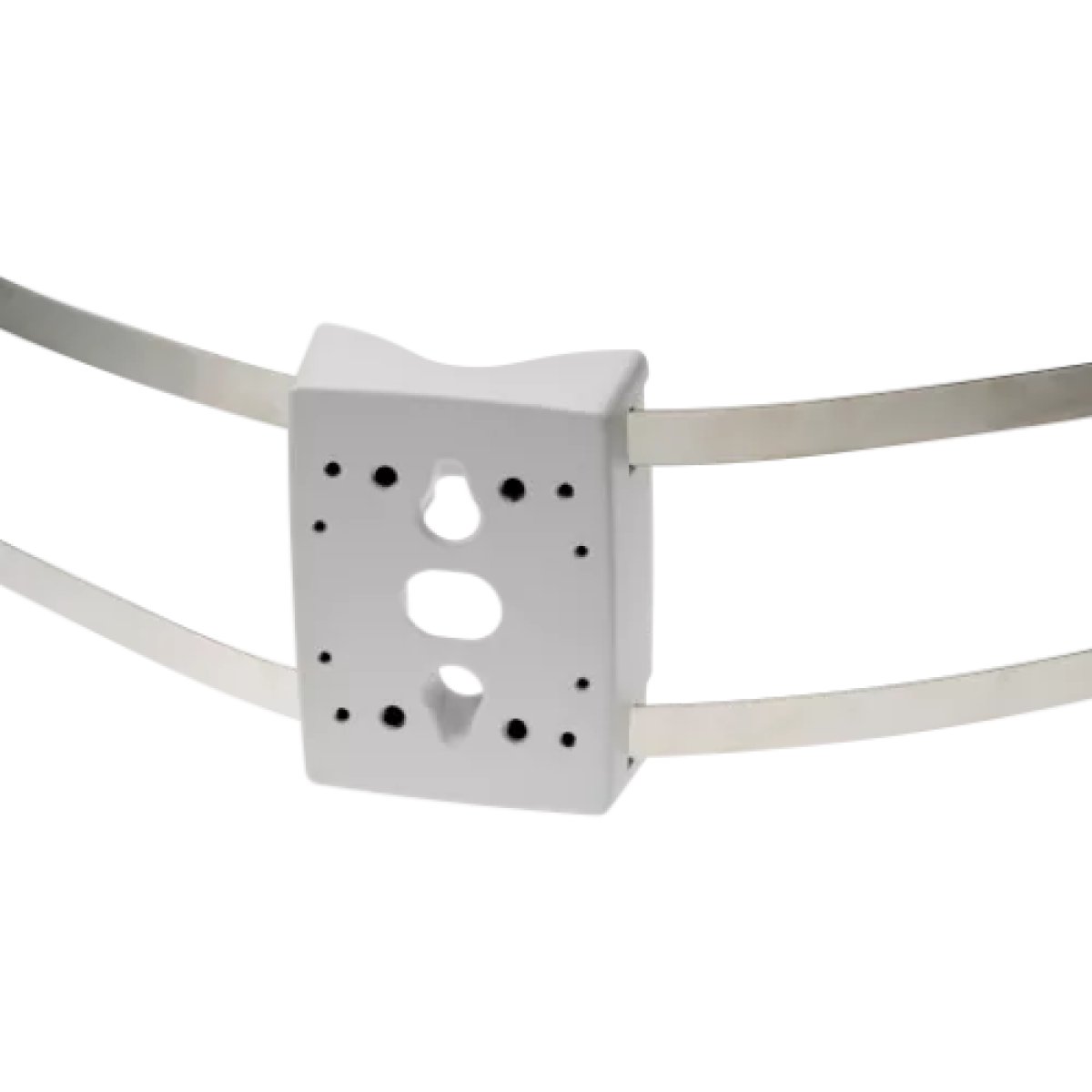

Dual-Size Flexible Band Fitting: Available in configurations matching small columns (60–110 mm / 2.4"–4.3" diameter) or massive industrial pillars (110–400 mm / 4.3"–15.7" diameter) using ultra-strong stainless steel straps.
Vandal-Resistant IK10 Certification: Built out of dense, impact-resistant materials designed to withstand blunt-force impacts and prevent physical tampering or removal at busy public checkpoints.
Marine-Grade NEMA 4X Shielding: Treated with a resilient, outdoor-ready powder coating that offers comprehensive protection against corrosion, coastal salt spray, and extreme UV yellowing.
Versatile Dual-Entry Cable Paths: Features a rear pass-through hole for clean wiring routed directly from inside hollow steel masts, alongside a side U-shaped 26 mm slot for surface-mounted conduit pipes.
15 kg Maximum Load Rating: Despite its light weight (only 0.3 kg / 0.7 lbs), its structural engineering safely holds payload weights up to 33 lbs (15 kg), easily managing fixed cameras equipped with heavy external illuminators or environmental shields.
Ideal Operational Applications
Parking Lot Lighting Columns: Clamping compact bullet cameras directly onto existing parking lot lighting poles to track driving lanes and pedestrian walkways.
Industrial Perimeter Fencing Bars: Mounting perimeter box cameras tightly onto thick structural steel pillars or fence posts surrounding warehouse complexes.
Transit Station Beams: Fastening discreet security hardware onto structural I-beams, train platform girders, or canopy pillars.
What's Included in the System Setup
AXIS T91A47 Pole Mount Bracket Unit
Premium Marine-Grade Stainless Steel Strapping Bands (Set of 2)
Heavy-Duty Industrial Cable Ties & Structural Fixing Screws
Installation & Alignment Guide
Required for Tightening: Axis Installation Tool for Pole Straps (Sold Separately)
