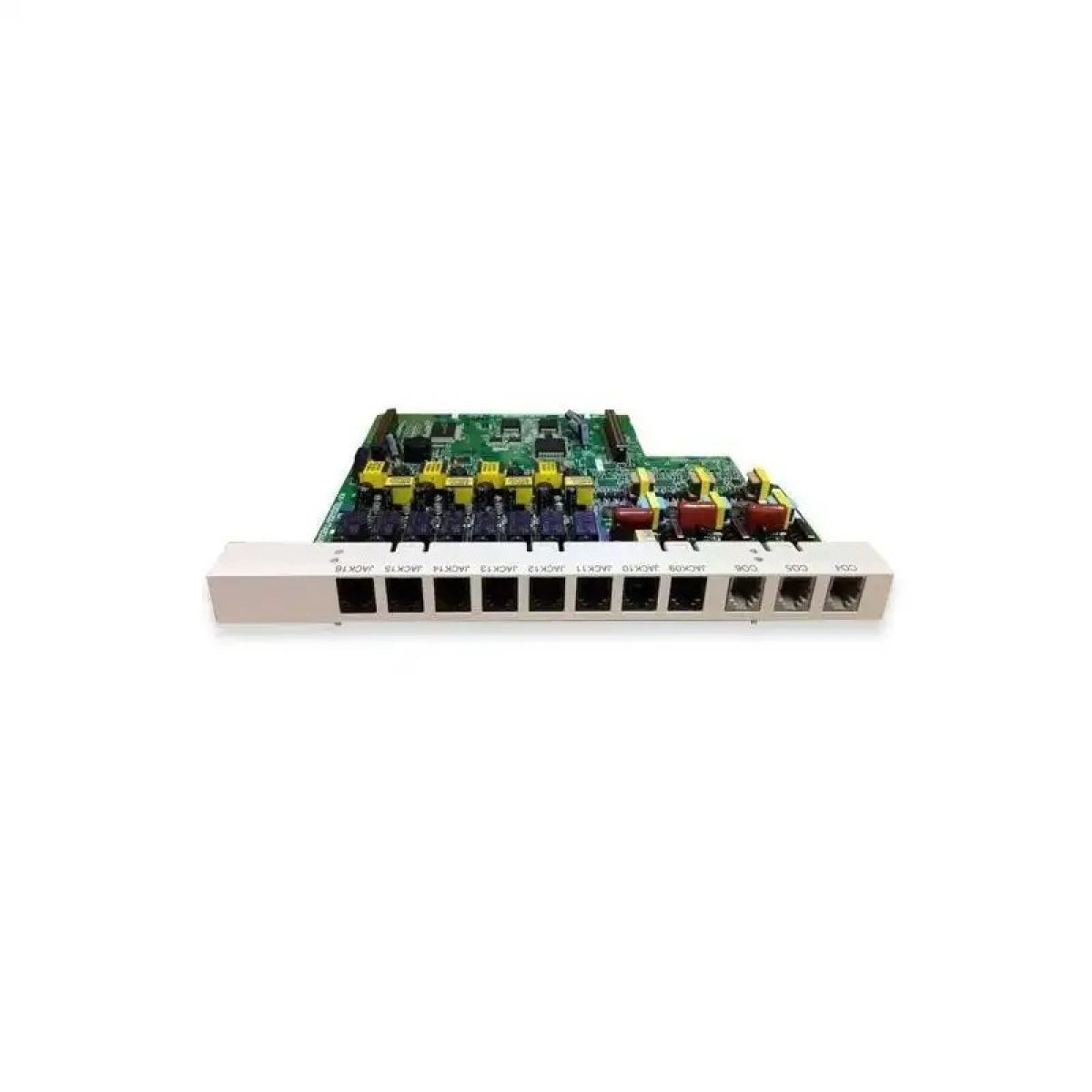

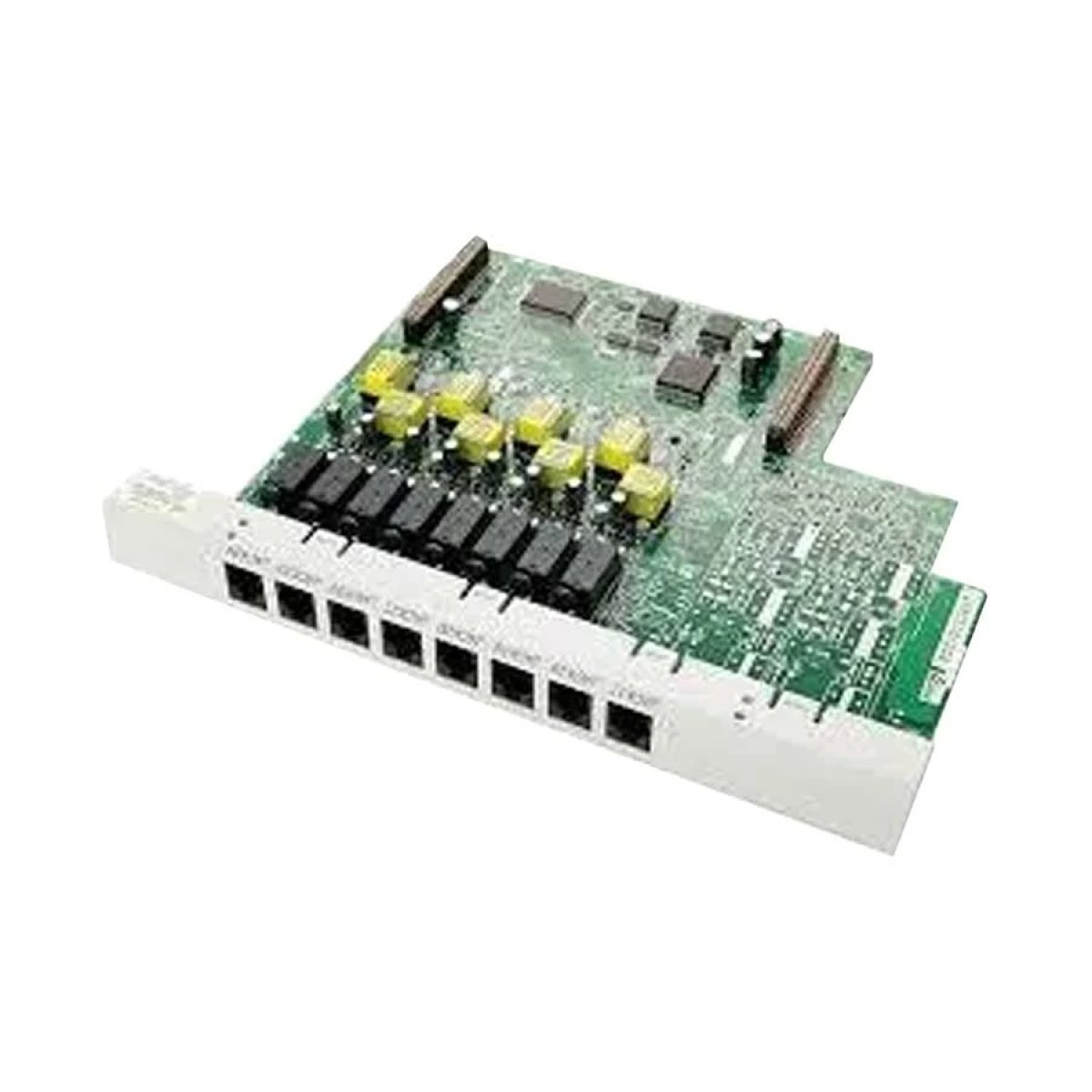

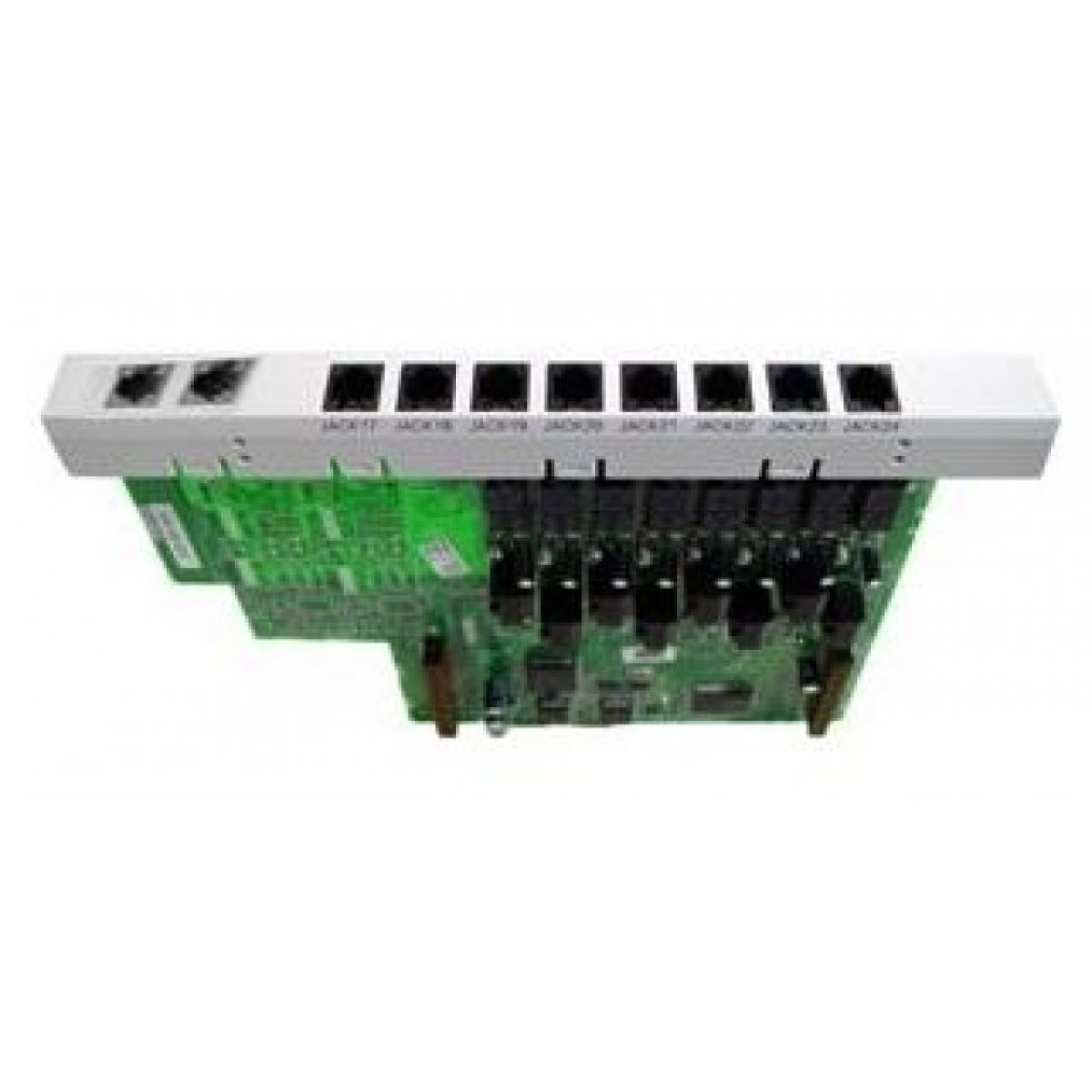

Modular Multi-Port PBX Interface Expansion Card A hardware-tier switching and interface expansion board engineered to plug directly into the internal proprietary PCIe or bus slots of an enterprise PBX chassis or hardware telephony server. Available in high-density analog (FXS/FXO), digital (T1/E1/PRI), or specialized transcoding configurations, this expansion board scales the physical physical port capacity of a central communication unit, allowing seamless hardware line matching without requiring a complete system overhaul.
Scalable Hardware Provisioning at the PBX Backplane
In large-scale commercial or industrial environments, telecommunication infrastructure demands fluctuate as businesses grow, remodel layouts, or change external service providers. If a facility installs a fixed-port telephone box, adding a few new desks or connecting an additional backup line from the utility would force them to buy an entirely new master controller. A modular PBX Expansion Card eliminates this infrastructure bottleneck by moving the system’s physical connection ports onto hot-swappable or field-installable circuit boards that slide directly into the main communication chassis.
The expansion card operates directly at the hardware backplane layer of the PBX server. Rather than running as an external network device that routes data across local ethernet wires (like a standalone media gateway), the card latches directly into high-speed internal system buses.
The onboard circuitry features specialized microcontrollers and dedicated Digital Signal Processors (DSPs) that handle electrical line protection, line status sensing, and real-time audio compression right at the point of physical wire termination. Because it talks directly to the master system CPU across the internal hardware bus, data latency is effectively zero, making it an incredibly stable choice for handling high-density incoming audio traffic and precision signaling.
Strategic Module Variant Profiles
PBX expansion cards are specified and ordered as individual line items to match the exact physical wiring layout of the facility:
1. Analog Station Cards (FXS Interface Modules)
Internal Port Provisions: Houses high-density arrays of physical ports engineered to supply standard dial tone, battery loop current, and alternating ring voltage ($90\text{V AC}$) to legacy analog devices.
Best For: Adding new analog desk extensions, guestroom telephone runs, elevator emergency lines, or physical fax machine lines.
2. Analog Trunk Cards (FXO Interface Modules)
Utility Circuit Bridging: Outfitted with specialized optical isolation circuitry designed to receive analog lines coming from the local public telephone utility company.
Best For: Adding redundant physical phone lines to act as localized emergency calling lines or hardware dial-in lines during primary network outages.
3. Digital Trunk Cards (T1/E1/PRI Multi-Spans)
High-Capacity Multiplexed Lines: Features high-speed digital processors that terminate multiplexed primary rate interface lines from a carrier utility, driving up to 24 (T1) or 30 (E1) concurrent digital voice channels down a single shielded wire run.
Best For: Connecting high-volume corporate communication cores or localized customer call centers directly to the regional telephone backbone.
Key Performance Features
Universal Backplane Bus Integration: Engineered to interface natively with the master PBX chassis bus infrastructure, eliminating external network dependencies, additional IP address assignments, or localized data patch cable clutter.
Onboard Carrier-Grade Line Filtering: Built-in G.168 hardware echo-cancellation chips operating at a $128\text{ms}$ tail length, stripping away high-frequency line hums, cross-talk, and impedance reflections before the audio stream hits the system memory core.
Dynamic Low-Profile Structural Footprints: Available in standard rack-unit matching form factors, allowing modules to slide cleanly inside compact 1U/2U server boxes or lock securely into vertical card cages.
Lightning and Over-Voltage Surge Armor: Every individual physical port is guarded by solid-state transient voltage suppressors (TVS), insulating the core PBX server motherboard from lightning strikes or high-voltage line shorts occurring on outdoor utility wiring loops.
Plug-and-Play Administrative Tracking: The main system operating software automatically runs an hardware inventory scan during boot-up, identifying newly slotted cards, mapping the physical line channels, and populating them on the web management dashboard instantly.
Technical Performance MatrixEngineering Metric ParameterHigh-Density FXS Analog Station CardDigital T1/E1/PRI Trunk CardPhysical Interface Density8 / 16 / 24 $\times$ Ports (RJ-11 or Amphenol)1, 2, or 4 $\times$ RJ-48C Digital SpansSimultaneous Call CapacitiesUp to 24 Concurrent Active Audio PathsUp to 120 Concurrent Channels (Quad E1)Core Interface Bus TypeProprietary PCIe / Module Slot Form FactorStandard PCIe / Modular Backplane BusElectrical Line SignalingLoop Start / Ground Start Analog ProfilesEuroISDN (Q.921, Q.931), National ISDN-2Integrated Transcoding DSPsLocalized Echo Cancellation & DTMF ChipsClock Synchronization & Digital Stream ProcessorsOn-Hook Standby Voltage Feed-48V DC Regulated Nominal Battery SupplyNot Applicable (Digital Logical Framework)Line Protection ThresholdOver-Voltage TVS Diode Network ArraysIntegrated Isolation Signal TransformersHardware Card ProfileDedicated Slot Internal Plug-in BladeStandard PCI Express Low-Profile Slot OptionCompliance CertificationsFCC Part 68 / CE / RoHS CompliantCE / FCC Approved / Telecom Part 68Standard Procurement Package Components
Required System Add-ons: External RJ-11/RJ-45 Breakout Cables, High-Density 50-Pin Amphenol Tail Assemblies (for dense 16/24-port cards), 19-Inch Rackmount Telecom Patch Panels, and Matching PBX Server Core System Hosting Firmware Licenses (Sold Separately based on project network BOQ requirements)
