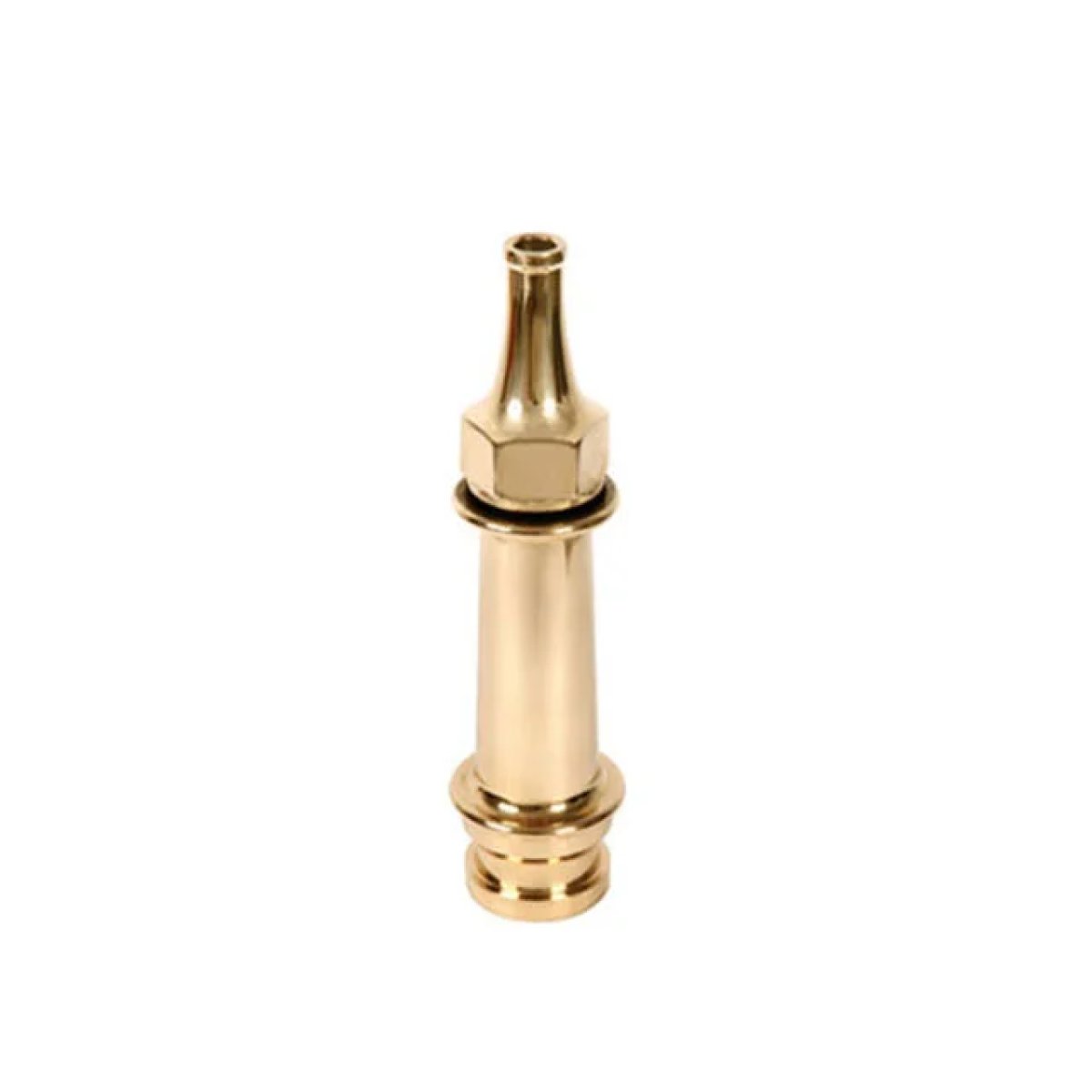

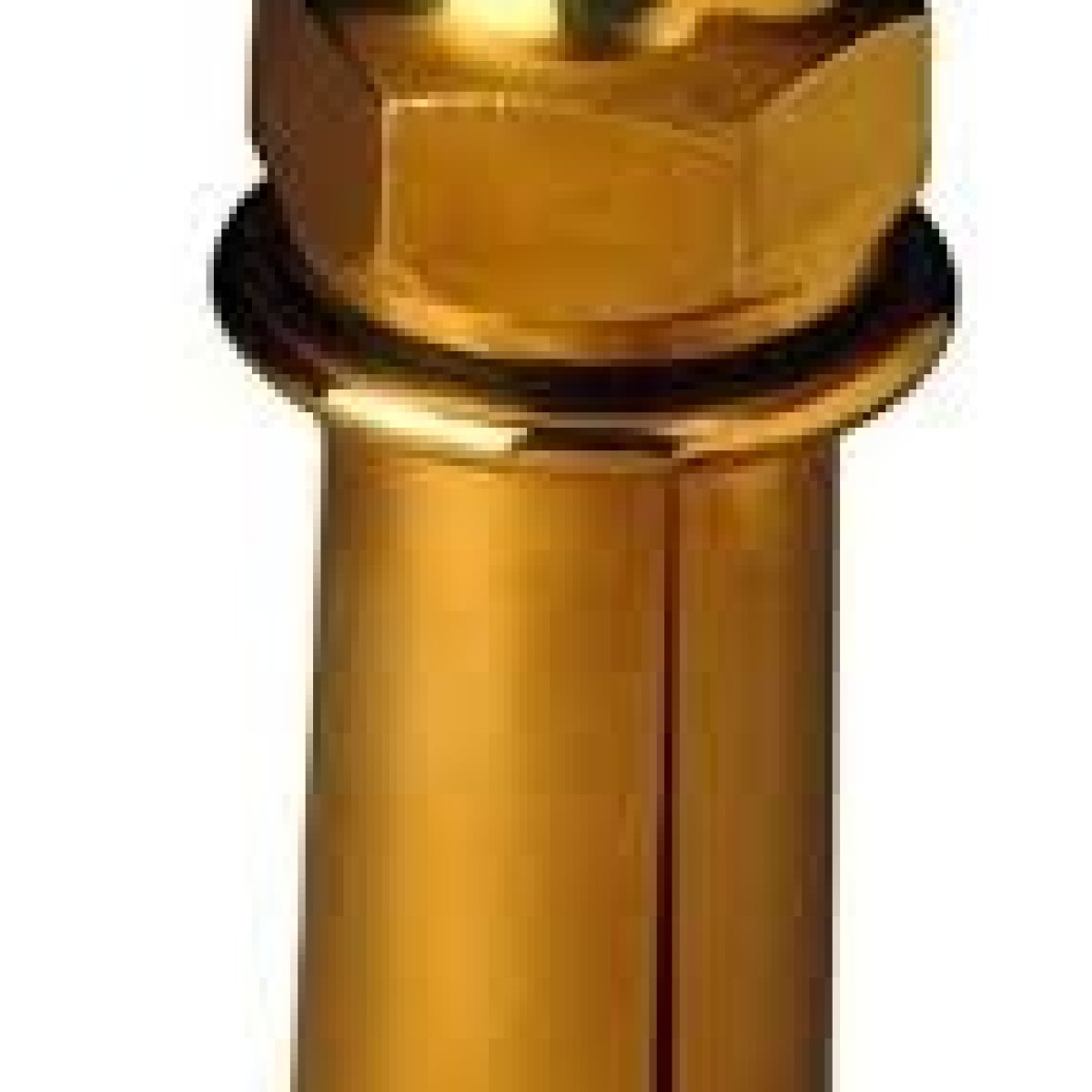

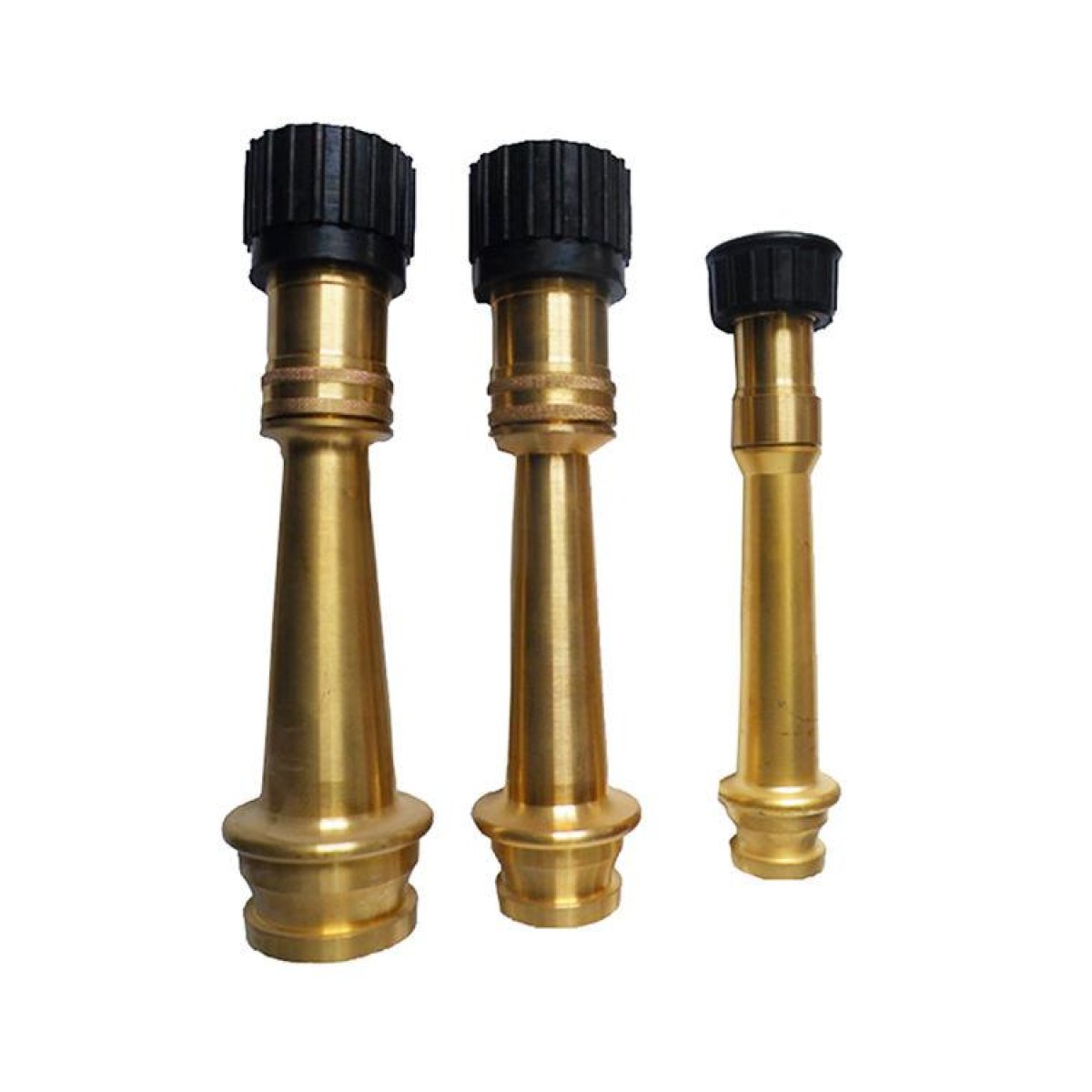

Multi-Purpose Variable Jet / Spray / Fog Fire Hose Nozzle (1.5" / 2.5") An industrial-grade, high-impact fire hose nozzle designed to deliver precise control over water discharge patterns during emergency response operations. Outfitted with an ergonomic twist or lever control mechanism, this heavy-duty nozzle allows operators to transition seamlessly from a concentrated high-velocity straight jet for deep-seated structural penetration to a wide-angle fog spray for rapid heat absorption and personnel thermal shielding.
Variable Flow Dynamics for Tactical Fire Suppression and Thermal Defense
In the high-stress environment of an active structural or industrial fire, a nozzle must be versatile enough to adapt to rapidly changing threat landscapes. Directing a solid stream of water into a high-voltage electrical grid or a pressurized fuel spill can worsen the danger, while a weak spray cannot pierce thick charcoal layers to quench deep embers. The Premium Variable Jet/Spray Fire Hose Nozzle provides firefighters with the immediate tactical control required to manage these conditions safely.
Manufactured from high-purity copper alloys (such as cast brass or gunmetal) or hard-anodized aircraft-grade aluminum, the nozzle core is built to withstand extreme mechanical impacts, high-velocity sand grit erosion, and sudden hydraulic pressure drops without fracturing. The internal flow control chamber features precision-machined guide vanes that reduce internal fluid turbulence. This ensures that when the operator selects a straight jet, the stream remains tight and cohesive over long distances, maximizing reach while minimizing water drop-off.
Key Performance Features
Infinitely Variable Pattern Control: Features an intuitive twist-shroud or multi-position bale handle lever that shifts smoothly through three primary operational modes:
Straight Jet: Maximizes hydraulic throwing distance for reaching high ceilings or deeply recessed fire cores.
Narrow/Wide Fog Spray: Creates a dense blanket of fine water droplets optimized for rapid heat extraction and smothering surface blazes.
Complete Shut-off: Forms a positive, bubble-tight seal that completely halts water flow directly at the nozzle tip, preventing hose line water hammer during repositioning.
Heavy-Duty Rubber Bumper Shroud: Encased in a thick, shock-absorbing synthetic rubber bumper that protects the spray tip from denting or scoring when dragged across concrete floors or knocked against structural steel pillars.
Corrosion-Proof Fluid Matrix: Engineered entirely from non-ferrous, salt-water-resistant metallurgies or hard-anodized alloys, ensuring the internal spinning teeth and sealing rings never seize or scale up during long idle periods.
Standard Quick-Connect or Threaded Swivels: Configurable with a factory-sealed $2.5"\text{ (65 mm) Instantaneous Male Plug (BS 336)}$ or standard $1.5"\text{/2.5\" National Hose (NH/NST) female threads}$, preventing hose kinking by allowing the nozzle to rotate independently under full system pressure.
High Hydrostatic Safety Margin: Tested under strict factory quality-assurance protocols, maintaining structural integrity up to a working pressure of 16 to 20 bar and boasting a burst threshold exceeding 40 bar.
Ideal Infrastructure Applications
Commercial Building Fire Cabinets: Paired with semi-rigid hose reels or flat canvas attack lines inside corporate towers and shopping centers to provide code-compliant first-line defense.
Marine and Offshore Decks: Standard deployment on saltwater washdown lines, cargo vessels, and offshore oil platforms where marine atmospheric corrosion is severe.
Industrial Manufacturing Complexes: Deployed across petrochemical processing floors, timber yards, and chemical storage vaults to tackle fast-spreading Class A and Class B fires.
Technical Performance MatrixEngineering MetricStandard 1.5" Multi-Purpose NozzleHeavy-Duty 2.5" Industrial NozzleNominal Inlet Diameter$1.5"\text{ (38 mm) Base Interface}$$2.5"\text{ (65 mm) Base Interface}$Material CompositionForged Brass / Hard-Anodized AluminumLeaded Gunmetal (LG2 Bronze) / Alloy BaseFlow Rate Output (@ 7 bar)~115 to 230 Liters/Min (30-60 GPM)~350 to 500+ Liters/Min (90-130 GPM)Effective Throw Range (Jet)Up to 15 to 18 Meters ($50\text{–}60\text{ ft}$)Up to 22 to 26 Meters ($72\text{–}85\text{ ft}$)Standard Inlet ConnectionsThreaded NH / NST / Rocker LugInstantaneous BS 336 / Machined FlangeMax Working Pressure16 bar ($232\text{ PSI}$) Continuous16 bar ($232\text{ PSI}$) ContinuousFactory Hydrostatic TestValidated up to 24 bar ($348\text{ PSI}$)Validated up to 24 bar ($348\text{ PSI}$)Outer Protection WrapImpact-Resistant Synthetic Nitrile RubberHigh-Density Vulcanized Rubber ShroudWhat's Included in the System Setup
Complete Variable Jet/Spray Fire Hose Nozzle Core Assembly
Pre-installed Neoprene High-Pressure Moisture Sealing Washer
Factory Inspection and Hydrostatic Calibration Performance Certificate
Optional System Add-ons: Ergonomic Pistol Grip Handles, High-Expansion Foam Aerating Tubes, and Heavy-Duty Canvas Nozzle Storage Holsters (Sold Separately)
