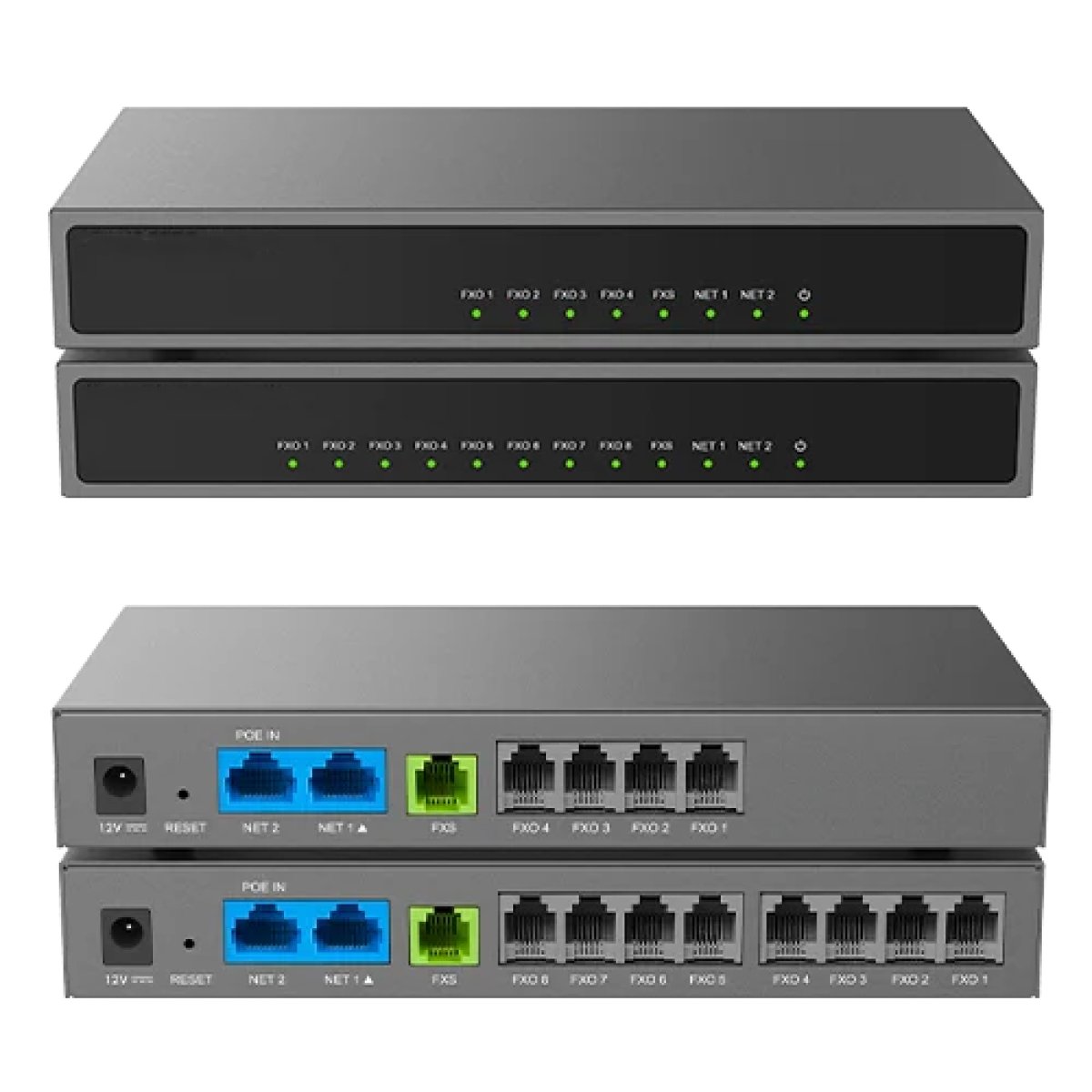

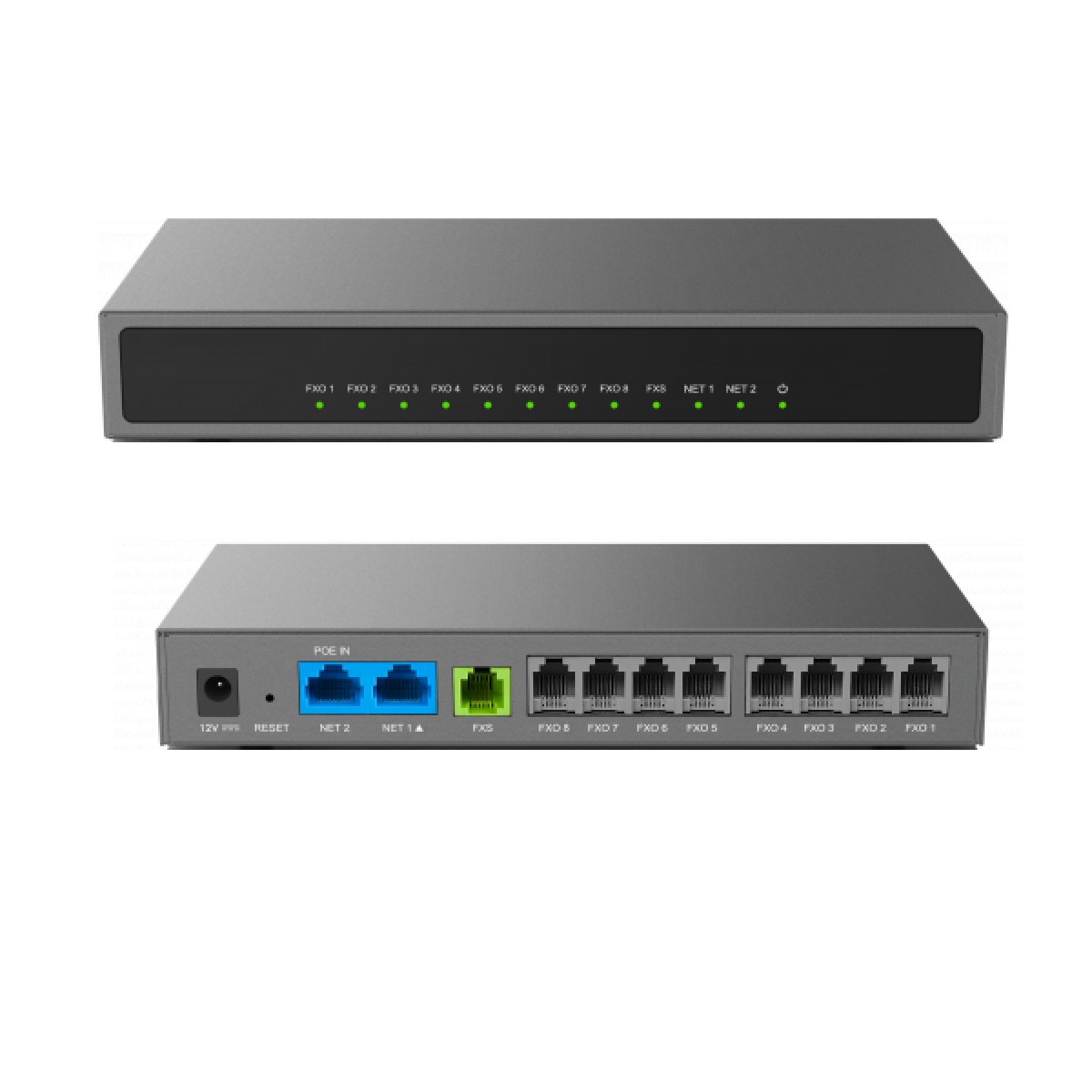

Multi-Port FXO VoIP Gateway Appliance A specialized hardware-translation network appliance engineered to bridge physical, analog Central Office (CO) telephone lines from a traditional utility provider directly into an IP-based voice network. Utilizing Session Initiation Protocol (SIP V2), this rack-mounted gateway converts incoming analog trunk circuits into compressed digital voice packets—serving as a critical local PSTN access path, analog PBX trunking bridge, or automated emergency failover life-safety pipe for cloud-hosted phone systems.
Bridging Conventional Analog Utility Trunks into the Digital IP Cloud
In the design of modern corporate communications, organizations are rapidly migrating to cloud-hosted Unified Communications (UCaaS) platforms. However, completely disconnecting physical utility connections introduces a massive vulnerability: reliance on a single public internet pipe. If the local internet connection drops during a storm, fiber cut, or ISP outage, the entire facility loses the ability to dial emergency services or receive customer calls. An FXO VoIP Gateway solves this infrastructure problem by providing a secure, on-premises bridge between traditional copper telephone company wires and the digital IP network.
An FXO (Foreign Exchange Office) port is a hardware interface designed to look and behave exactly like an analog telephone set to the phone company. It receives a dial tone, battery current, and ring voltages from a remote central office switcher.
The workflow of an FXO gateway functions via an intelligent electro-mechanical loop:
Inbound Sensing: When an external customer dials the facility's local telephone number, the utility provider sends a high-voltage AC ringing signal ($90\text{V AC}$) down the physical copper pair. The gateway's internal optical isolators detect this voltage spike instantly.
Loop Closure: The gateway goes "off-hook" electronically, closing the circuit loop to draw DC loop current, which answers the call and tells the phone company to stop ringing.
Packet Transcoding: As the caller speaks, high-density onboard Digital Signal Processors (DSPs) capture the analog electrical sound waves, filter out background line buzzes using carrier-grade echo-cancellation chips, and compress the audio into standard IP network packets (e.g., G.711 or Opus).
SIP Routing: These packets are tagged with Session Initiation Protocol (SIP) headers and streamed over local Cat6 Ethernet lines straight to internal IP desk phones or cloud routing servers.
Key Performance Features
High-Availability Emergency PSTN Failover: Features integrated Local Survivability software rules. If the primary corporate internet connection fails completely, the gateway automatically re-routes all outbound and emergency calls through the connected physical analog utility lines.
Hardware-Accelerated Line Echo Cancellation: Outfitted with dedicated G.168 hardware echo cancellation chips operating at a $128\text{ms}$ tail length, filtering out impedance reflections and audio leaks common on old municipal copper grids.
Comprehensive T.38 Fax Relay Support: Includes specialized modem-demodulation software stacks that cleanly translate sensitive fax machine streams into error-corrected data packets, ensuring reliable fax transfers over IP lines.
Intelligent Caller ID & DTMF Decoding: Natively decodes Bellcore, ETSI, and BT standard analog Caller ID data streams while interpreting incoming touch-tone DTMF digits for automated routing trees (IVR).
Enterprise Network Security Framework: Processes Transport Layer Security (TLS) for call control signaling and Secure Real-time Transport Protocol (SRTP) for audio streams, protecting the physical gateway junction from network wire-tapping or data sniffing.
Ideal Infrastructure Applications
Disaster Recovery Server Racks: Serving as the dedicated backup voice gateway for corporate headquarters running hybrid cloud communication architectures.
Remote Rural Facilities & Outposts: Connecting logistics hubs, mining fields, or agricultural centers to the local analog phone system where high-speed broadband fiber is unavailable.
Retail Outlet & Gas Station Clusters: Providing low-cost local analog line routing for alarm panels, credit card verification machines, and emergency back-office lines.
Technical Performance MatrixEngineering Metric ParameterEnterprise Multi-Port FXO GatewayCompact Office FXO GatewayPhysical Interface Ports Onboard4 / 8 / 16 $\times$ FXO Ports (RJ-11 Interfaces)1 or 2 $\times$ FXO Ports (RJ-11)Simultaneous Call TranscodingUp to 16 Concurrent Session ConversionsUp to 2 Concurrent Conversions MaxCore Software Protocol StackSIP V2 (RFC 3261), FXO Loop Start / Ground StartSIP V2, Loop Start SignalingVoice Codec Processing CoreOpus, G.711 (A/μ), G.722 (HD), G.729A/B, G.726G.711 (A/μ), G.729A/B, T.38 Fax PassNetwork Interface ConnectionsDual-Sensing 10/100/1000M RJ-45 LAN Ports1 $\times$ 10/100M Fast Ethernet RJ-45Hardware Echo Cancellation128ms Tail-Length G.168 Echo Filtering64ms Tail-Length Echo FilteringPSTN Line Disconnect SensingBusy Tone, Polarity Reversal, Current DropBusy Tone Detection, Polarity FlipHardware Form Factor Profile1U 19-Inch Rackmount Rugged Steel ChassisCompact Desktop / Wall Bracket FrameCompliance CertificationsCE / FCC / RoHS / UL 62368-1 Safety / Telecom Part 68CE / FCC / RoHS CompliantStandard Procurement Package Components
Intelligent Multi-Port Enterprise FXO VoIP Media Gateway Unit
Heavy-Gauge 19-Inch Equipment Rack-Mounting Ear Brackets & Screw Sets
Grounded AC Power Interface Supply Cord (or 12V DC Regulated Power Adapter for compact models)
Master System Administrator Configuration Manual and Secure Dashboard Access Credentials
Required System Add-ons: Standard RJ-11 Telephone Patch Cables, 19-Inch Rackmount Telecom Patch Panels, Network Layer 2/3 Managed Switches, and Active Cloud PBX User Account Licenses (Sold Separately based on project site BOQ requirements)
