Multi-Channel GSM/4G LTE VoIP Gateway Appliance

Bridging Cellular Networks with the Digital IP Infrastructure

In corporate communication architecture, routing high volumes of outbound calls to mobile phones over traditional landlines or internet-based SIP trunks can accumulate significant long-distance toll charges. Furthermore, establishing reliable wireline communications in temporary job sites, rural outposts, or maritime vessels is often structurally impossible. A GSM VoIP Gateway eliminates these financial and geographic bottlenecks by allowing an organization’s central phone system to connect directly to the cellular network, turning mobile traffic into a local peer-to-peer wireless transaction.

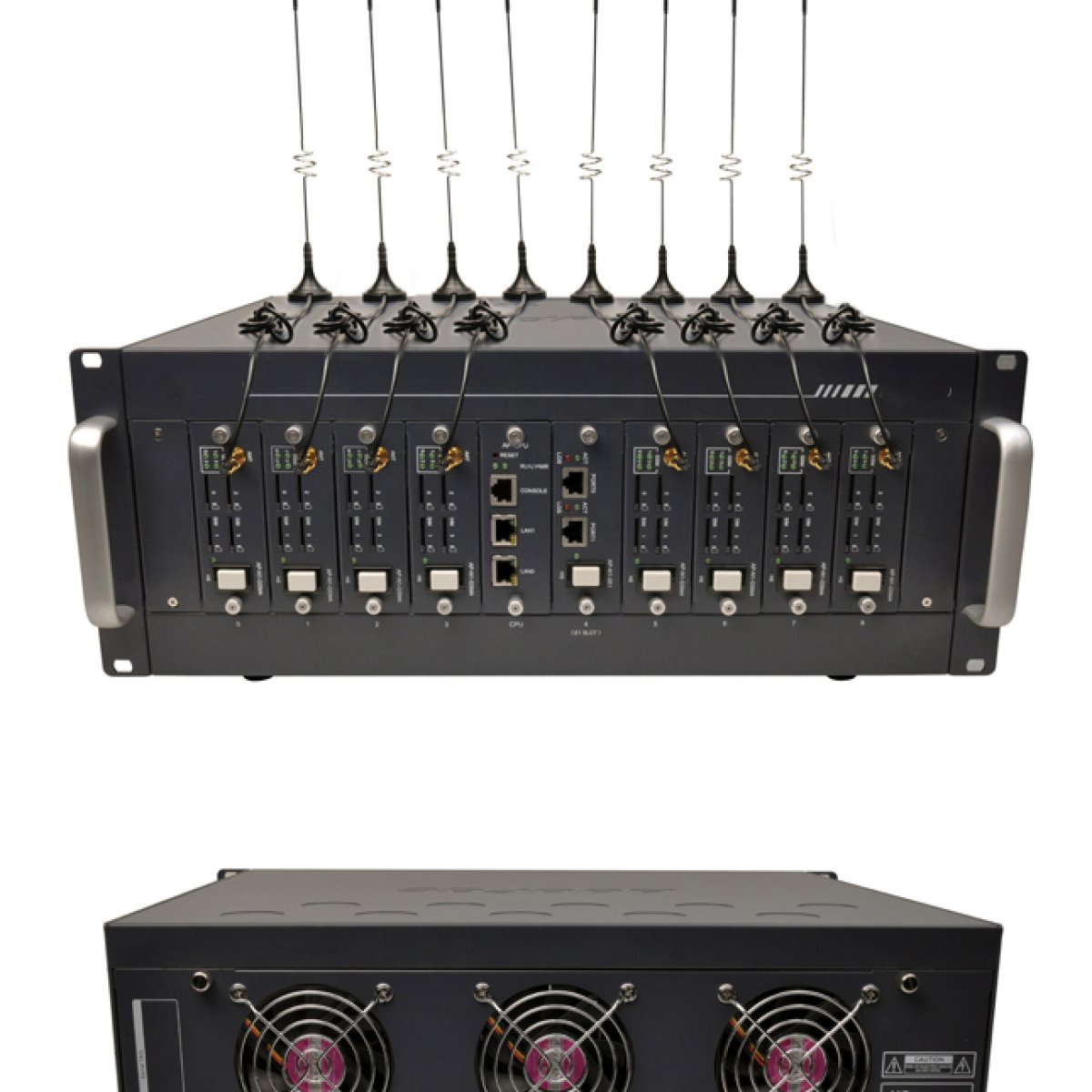

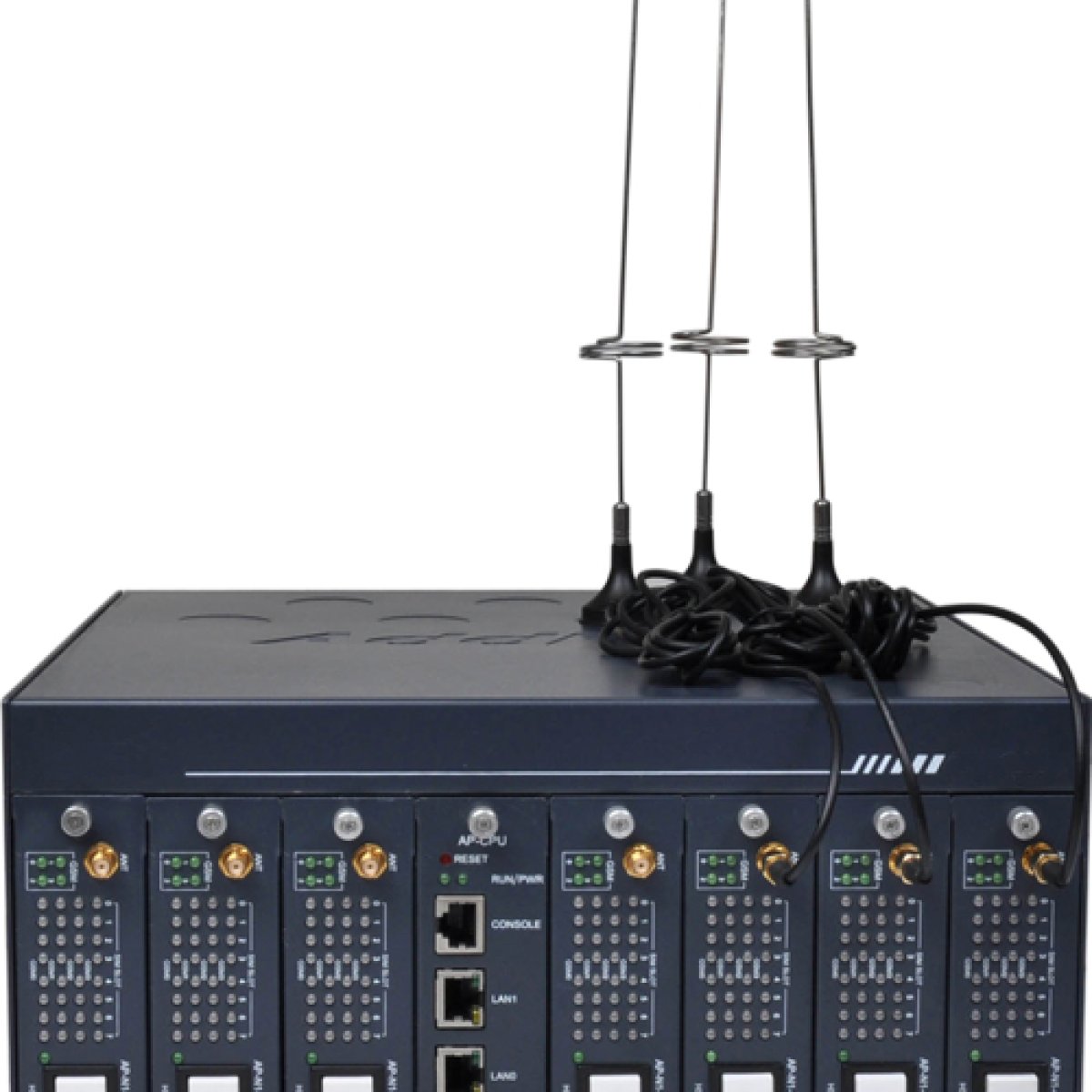

The appliance features an industrial-grade rack-mounted chassis containing an array of independent cellular radio modules and external high-gain antenna taps. The gateway acts as a high-speed media translator between two distinct communication frameworks:

• The Wireless Cellular Domain: Multiple physical SIM cards from local mobile network operators are inserted directly into the gateway’s onboard slots, assigning dedicated mobile phone numbers to the hardware.

• The Packet-Switched Domain: Standard RJ-45 Ethernet ports connect straight into the facility’s local network switches, registering the cellular channels as virtual voice trunks inside the central IP PBX or cloud call center server.

When an employee dials a customer's mobile number from their office IP phone, the central PBX routes the request to the GSM gateway. The gateway's internal processor picks an idle SIM card, initializes a wireless handshake with the nearest cellular tower, and opens a radio link. High-density internal Digital Signal Processors (DSPs) handle the real-time transcoding, compressing the cellular audio waveforms into clean IP network packets (such as G.711 or bandwidth-efficient mobile codecs like AMR) and vice versa.

Additionally, because it connects natively to the cellular network, the gateway can process bi-directional SMS text data, allowing companies to send automated text alerts or customer notifications straight from their core corporate software platforms.

Key Performance Features

• Substantial Mobile-to-Mobile Toll Savings: Converts expensive landline-to-mobile outbound calls into low-cost mobile-to-mobile intra-network calls by matching outbound phone numbers with dedicated SIM cards from matching carrier networks.

• Resilient Internet-Independent Failover: Provides an invaluable emergency backup calling path. If a critical incoming fiber line is severed, the gateway automatically re-routes the building's emergency and voice traffic over wireless 4G/GSM cellular networks, keeping the company connected.

• On-Board SMS API Text Engines: Supports standard HTTP API protocols, SMPP, and webmail interfaces, enabling businesses to deploy automated SMS marketing, two-factor authentication (2FA) verification codes, and text-based customer service queues.

• Dynamic Least-Cost Routing (LCR): Features smart internal routing tables that automatically analyze dialed prefixes and select the most cost-effective SIM card slot and cellular carrier channel to execute the call.

• Carrier-Grade Echo & Noise Control: Outfitted with specialized G.168 hardware echo-cancellation chips and ambient comfort-noise generation (CNG) filters to eliminate the wireless hiss and audio delay typical of cellular-to-IP handoffs.

Ideal Infrastructure Applications

• Remote Construction & Mining Campuses: Providing immediate, multi-line corporate phone connections to off-grid field locations before physical telephone wires or fiber optics can be run.

• High-Volume Telemarketing & Support Desks: Speeding up delivery and lowering the costs of mobile outreach and customer follow-up campaigns.

• Disaster Recovery Backup Server Racks: Serving as an automated, wire-free backup trunking line for banks, emergency utility centers, and hospital administration offices.

Technical Performance MatrixEngineering Metric ParameterEnterprise Multi-Channel GSM GatewayCompact Office GSM GatewayPhysical SIM Card Channels8 / 16 / 32 Independent SIM Slots1 / 2 / 4 Independent SIM SlotsWireless Mobile Band CompatibilityGSM 2G / 3G / 4G LTE Multi-BandGSM 2G / 3G / 4G LTE Multi-BandMax Concurrent Audio SessionsUp to 32 Simultaneous Wireless CallsUp to 4 Concurrent Wireless Calls MaxCore Connection Software StackSIP V2 (RFC 3261), IAX2 Protocol SupportSIP V2 (RFC 3261)Voice Codec Transcoding BaseAMR, G.711 (A/μ), G.729A/B, G.722, G.726G.711 (A/μ), G.729A/B, Mobile AMR CodecsNetwork Interface Ports Built-inDual-Sensing 10/100M RJ-45 LAN Ports1 $\times$ 10/100M Fast Ethernet RJ-45Antenna Interface SplittingSMA Male Connectors (with multi-port combiner)Individual Stubby SMA AntennasSMS Text Message FeaturesWeb SMS, SMS-to-Email, HTTP API EnginesWeb SMS Interface PortalHardware Form Factor Profile1U 19-Inch Rackmount Rugged Steel ChassisCompact Desktop / Wall Bracket FrameCompliance CertificationsCE / FCC / RoHS CompliantCE / FCC ApprovedStandard Procurement Package Components

• Intelligent Multi-Channel Enterprise GSM/LTE VoIP Gateway Appliance

• High-Gain Omni-Directional Magnetic-Base Antennas with SMA Extension Cables

• Heavy-Gauge 19-Inch Equipment Rack-Mounting Ear Brackets & Screw Sets

• Grounded AC Power Interface Supply Cord (or Regulated DC Power Adapter for compact models)

• Master System Administrator Configuration Manual and Secure Dashboard Access Credentials

• Required System Add-ons: Active Enterprise SIM Cards (with authorized voice/SMS carrier plans), Network Layer 2/3 Managed Switches, and External High-Gain Outdoor Directional Yagi Antennas (Sold Separately based on project site cellular signal strengths)
