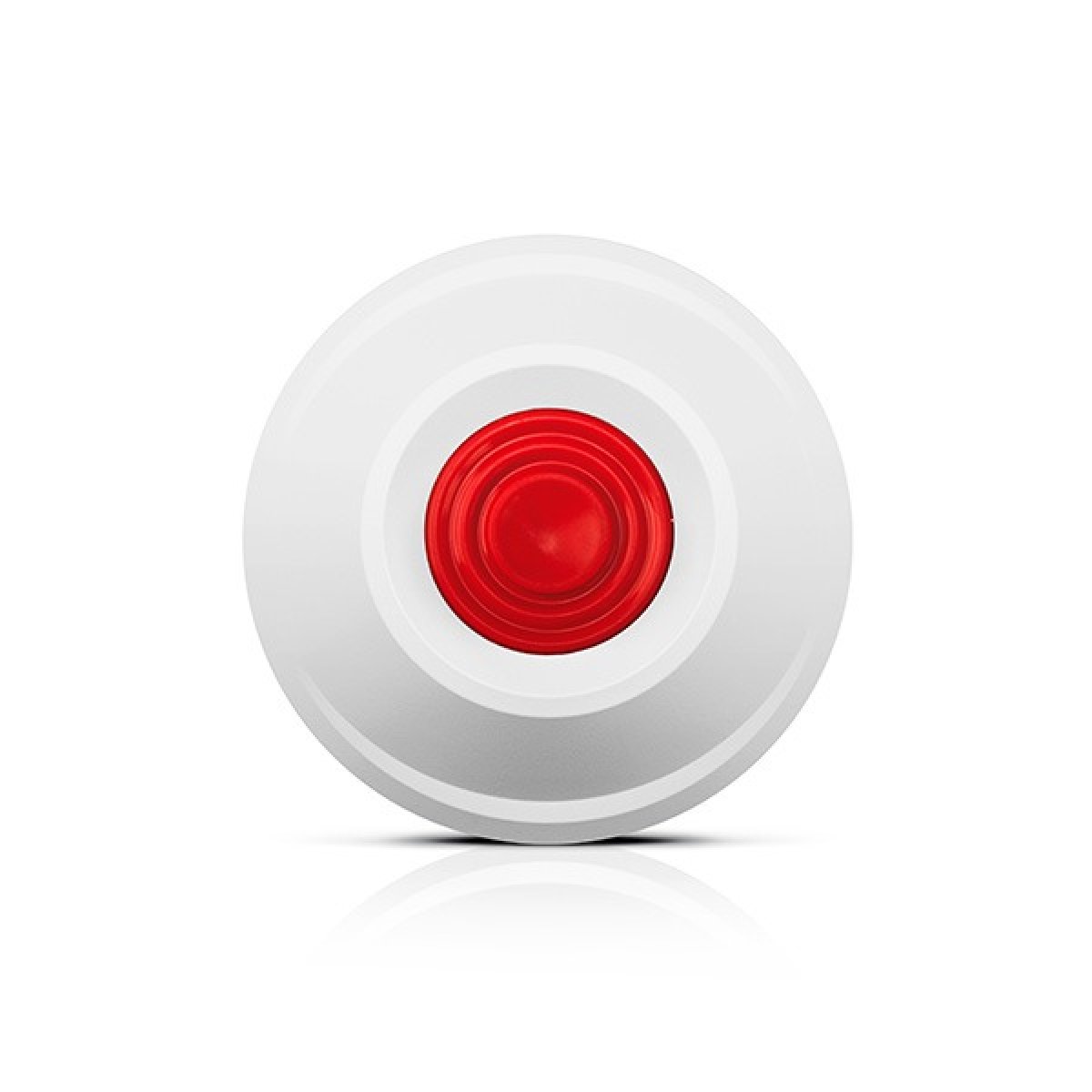

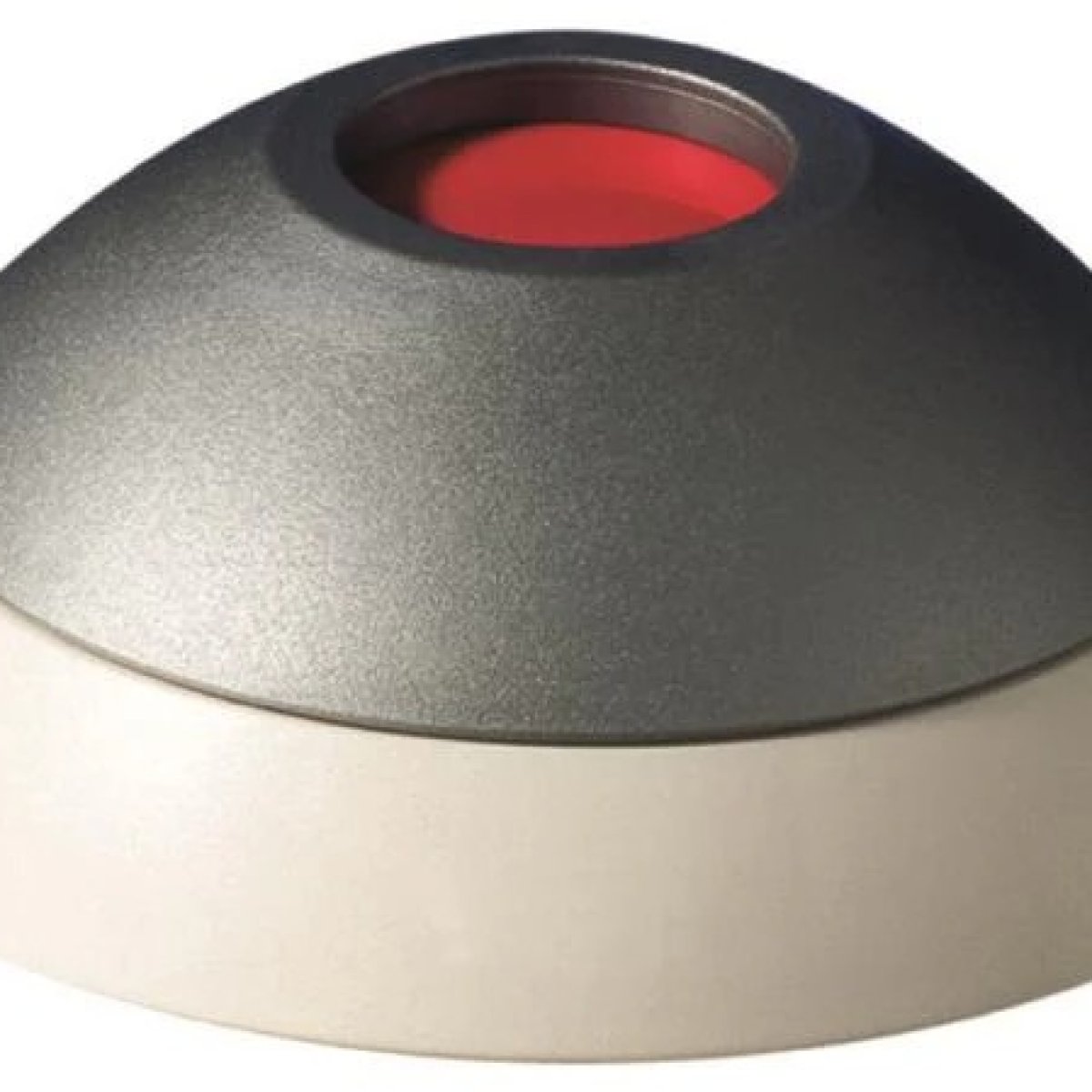

Under-Counter Discreet Mechanical Emergency Panic Button & Control Hub An industrial-grade, highly discreet manual emergency initiation interface designed for instant, unnoticeable activation during duress, break-ins, or armed robbery events. Engineered for low-profile mounting beneath desks, countertops, or bank teller cages, this station integrates with central security panels or dedicated telecommunication polling hubs (such as the PB-100 system), initiating silent emergency phone routing, real-time audio surveillance monitoring, and automated security central-station alerts without tipping off an active threat.
Covert Tactical Duress Interception for High-Risk Environments
While standard manual call points and fire alarm pull stations are painted high-visibility red to attract immediate attention during a building crisis, security threats like armed robberies, workplace violence, or hostage scenarios require the exact opposite engineering approach. In a bank line, luxury jewelry boutique, or government reception desk, trying to reach for an overt wall-mounted fire pull will escalate the immediate danger. A Duress Panic Button provides a completely hidden, silent interface that allows staff to summon armed response or corporate security while maintaining total compliance with an aggressor.
The button assembly is built into a compact, textured housing designed to blend seamlessly into shadows under a counter or desk lip. It uses a high-reliability mechanical micro-switch array. When an operator pulls or pushes the recessed button element, the device initiates an immediate silent state transition.
Rather than tripping local sirens or flashing strobes, the signal travels upstream to a specialized PB-100 Polling/Control Module or an intrusion panel loop. The panel overrides the standard communications loop to dial designated emergency monitoring centers, opening a silent, one-way microphone stream. This allows dispatchers to listen live to the room's audio, verify the threat level, and coordinate an armed tactical police response without alerting the intruder in the room.
Strategic System Topologies
Depending on your facility's IT infrastructure and low-voltage layout, panic buttons route through two main electrical topologies:
1. Dedicated Polling System Arrays (e.g., PB-100 Protocol)
High-Security Continuous Supervision: The panic stations connect to a central digital bus controller that actively samples ("polls") the electrical status of every desk station multiple times per second. If a wire is covertly cut or grounded by an intruder, the console registers an instant line-fault alert.
Best For: Corporate banking offices, high-value vaults, and municipal courthouses.
2. Standard 2-Wire DC Circuit Intrusion Interfacing (GLT)
Hardwired Panel Drop: Operates as a dry-contact, normally closed or normally open supervised loop running straight to a localized zone on a master building security panel.
Best For: Small retail shop counters, private reception desks, and commercial gas stations.
Key Performance Features
Anti-Accidental Activation Shielding: Outfitted with structural side guards or a deeply recessed actuation channel, preventing staff from accidentally triggering a false alarm with their knees or rolling office chairs.
Integrated Tamper Switch Circuit: Features an internal, independent mechanical micro-switch behind the faceplate. If an unauthorized individual attempts to unscrew or rip the housing off the desk frame, it triggers an instant system-tamper alert.
Real-Time Live Audio Verification: Seamlessly interfaces with low-profile microphone nodes to provide telephone line-powered, two-way or silent one-way voice streaming back to security managers.
Rugged Steel or High-Impact ABS Formulation: Built to withstand years of physical wear under workstations, featuring heavy-gauge steel or flame-retardant ABS construction that resists impact.
Silent Mechanical Operation: The internal mechanical spring and click mechanisms are dampened, ensuring that pushing the button makes zero audible noise in a quiet room.
Ideal Infrastructure Applications
Commercial Bank Teller Windows: Tucked neatly under the lower cash drawer counters for immediate access during a heist.
Government Courthouses & Interview Rooms: Mounted beneath judge benches and clerk desks to address sudden room disruptions safely.
Hospital Emergency Room Triage Desks: Positioned out of sight to manage aggressive visitor interactions or medical duress scenarios.
Technical Performance MatrixEngineering Metric ParameterSupervised Polling / Analog Bus ProfileConventional Dry-Contact ProfileOperational Interface StyleRecessed Silent Under-Counter Pull/PushLow-Profile Button / Mushroom Cap OptionCommunication ArchitectureManaged Bus Link / Telecommunication Loop2-Wire or 4-Wire Hardwired Supervised ZonePolling Controller OptionDedicated PB-100 System Polling CompatibleStandard Intrusion / Alarm Panel InputInput Loop SupplyLine Powered Nominal / Low Current Draw12V DC to 24V DC Fixed System VoltagesTamper Protection SwitchInternal Mechanical Case Tamper MicroswitchOptional Mechanical Bracket Tamper LoopEnclosure Ingress ArmorIP40/IP44 Indoor Structural GradeIP40 Standard Indoor / IP65 OptionalHousing Compound BaseHeavy 16-Gauge Structural Stainless SteelHigh-Impact Fire-Retardant ABS BaseCompliance CertificationsUL Listed / CE Fire & Security / NDAA CompliantUL Listed / CE / VdS Certified OptionsStandard Procurement Package Components
Low-Profile Under-Counter Mechanical Panic Button Assembly
Integrated End-of-Line Supervisory Resistor Pack (for dry-contact variants)
High-Durability Wood/Metal Self-Tapping Mounting Screws and Gaskets
Technical Installation Layout Manual and Terminal Termination Guide
Required System Node: Dedicated PB-100 Central Telephone Concentrator Panel or Analog/VoIP Master Security Controller Unit (Sold Separately based on project-wide layout requirements)
