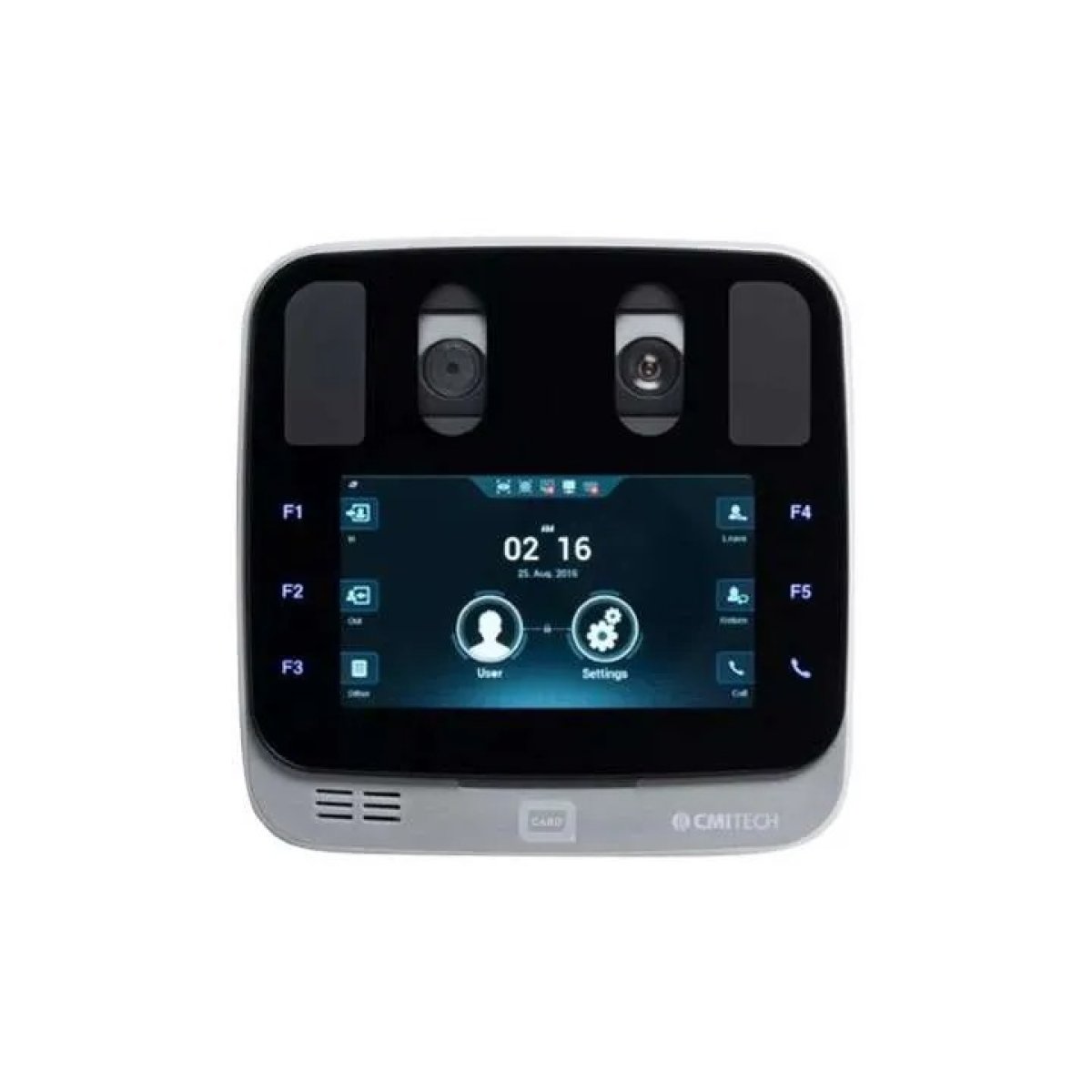

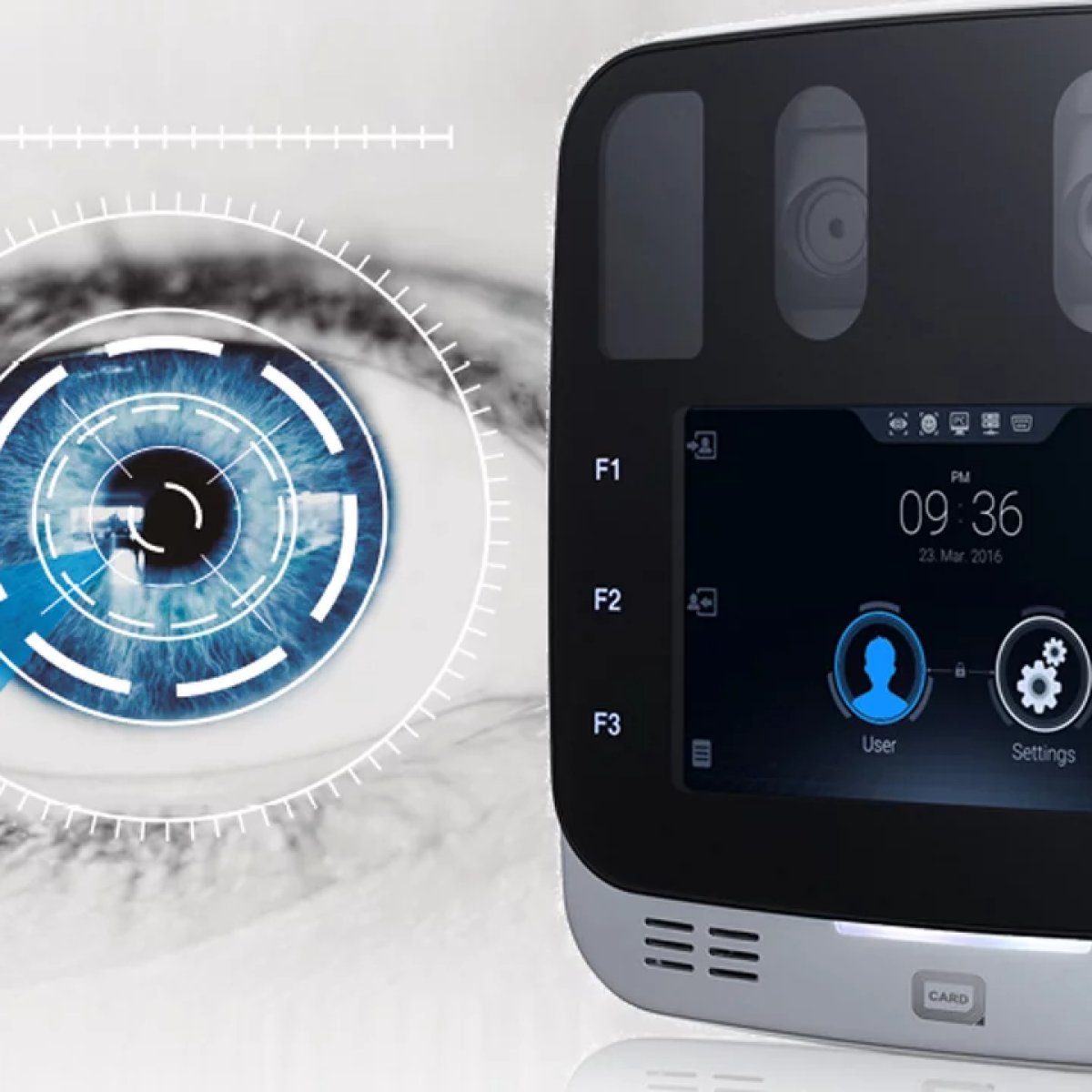

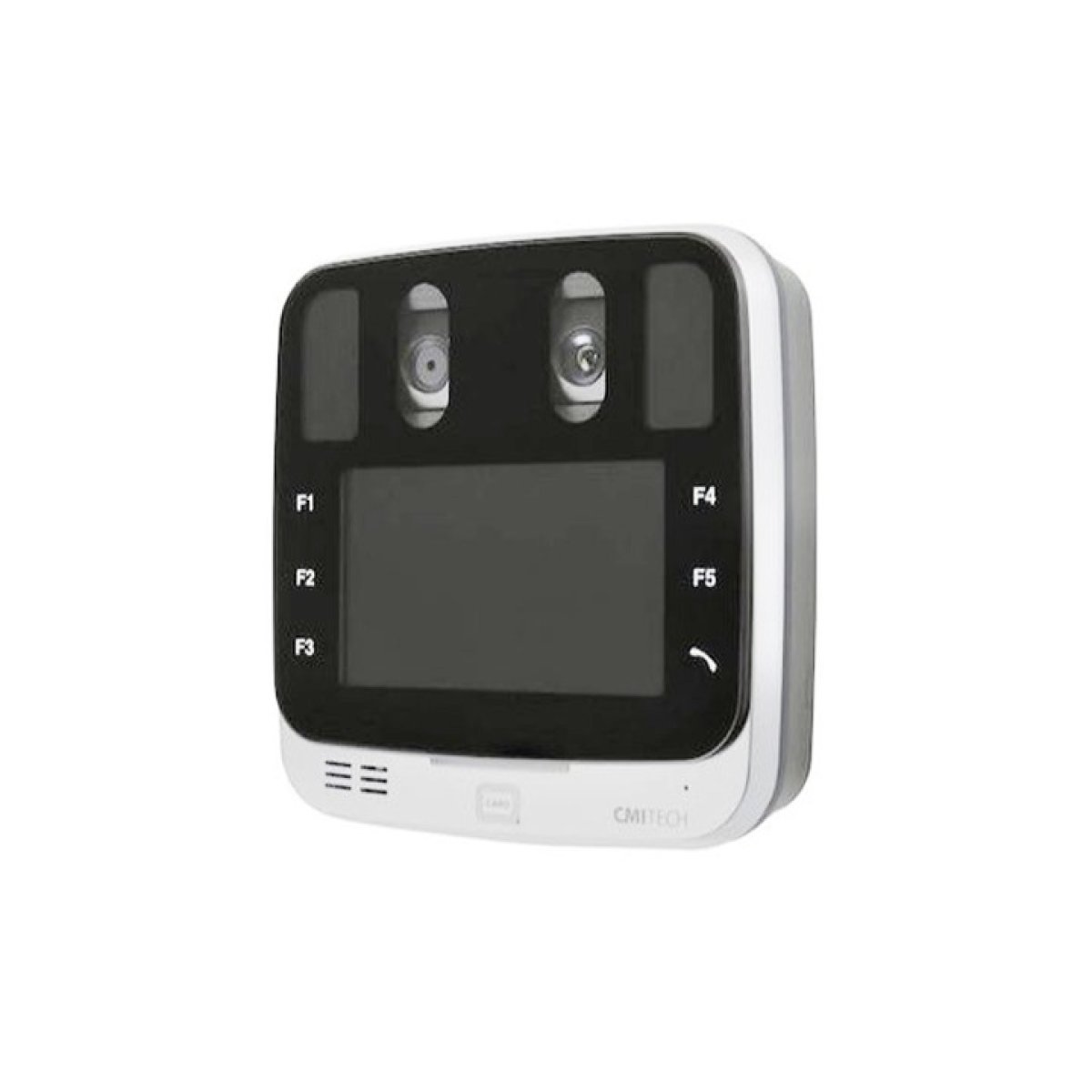

Ultra-Secure Contactless Iris Recognition Access Control Terminal The highest-tier biometric authentication terminal engineered for zero-trust environments, utilizing dual-eye iris structure analysis to enforce absolute perimeter security. Equipped with dedicated near-infrared (NIR) illuminators, high-resolution sensory cameras, and an advanced mathematical processing engine, this standalone network device maps more than 240 unique structural points per iris. It provides contactless, non-spoofable identity verification in less than 0.5 seconds, completely unaffected by protective clothing, face masks, contact lenses, or ambient lighting conditions.
Maximum Biometric Security for Critical Infrastructure Perimeters
While fingerprint scanners offer excellent everyday entry tracking and face recognition provides high-throughput convenience, both systems hit performance limits in ultra-secure environments. Fingerprints can wear down or be compromised by physical surface debris, and facial geometry can experience slight verification variances due to aging, dental surgery, or complex facial coverings. An Iris Recognition System bypasses these limitations entirely by analyzing the colored ring surrounding the pupil of the eye. The human iris is fully formed by 18 months of age and remains completely unchanged throughout a person's lifespan, featuring a pattern complexity that makes it statistically impossible for two individuals—even identical twins—to share the same iris signature.
The terminal runs on an intelligent edge-computing architecture. When an employee approaches the secure door portal, the terminal's auto-tilt optical camera sensor immediately locates their eyes using a safe, low-energy Near-Infrared (NIR) LED Light Array.
Unlike standard optical cameras that can be tricked by high-resolution printed graphics or 3D masks, near-infrared imaging reads right through protective gear like face masks, clear safety goggles, and prescription glasses. It isolates the intricate, unique structures of the iris—such as crypts, furrows, rings, and corona details.
The onboard processor maps these micro-features into a localized mathematical template, verifying identity against its internal secure database in under 0.5 seconds. Once authenticated, the terminal signals the physical locks to release while pushing a timestamped event log to the central security server.
Key Performance Features
Unmatched Statistical Purity: Offers an ultra-low False Acceptance Rate (FAR) of less than $0.00001\%$ (1 in 10 million), establishing it as the most mathematically accurate biometric modality available for physical access control.
Completely Touchless & Sterile Operation: Authenticates users cleanly at distances up to 40 cm ($1.3\text{ feet}$), eliminating all physical contact vectors to preserve strict hygiene standards in cleanrooms and medical wards.
Advanced Real-Time Liveness Detection: Built-in near-infrared illumination continuously measures pupil dilation reflexes and live-tissue characteristics, blocking unauthorized entry attempts from high-resolution digital photos, video playbacks, or glass prosthetic eyes.
Auto-Tracking Camera Mechanics: Features an integrated motorized auto-tilt camera array that automatically adjusts its vertical pitch to align perfectly with the user's height, preventing uncomfortable neck straining or bending at turnstile barriers.
Encrypted OSDP Communication: Natively supports Open Supervised Device Protocol (OSDP) V2, ensuring all cryptographic template transmissions between the edge terminal and the master access control board are fully encrypted against data hacking or wire tapping.
Robust Standalone Memory Core: Retains a large local storage capacity for up to 10,000 distinct user profiles and 100,000 offline event logs, ensuring continuous perimeter defense even during absolute corporate IT network dropouts.
Ideal Infrastructure Applications
Government Defense Vaults & Military Sites: Securing high-clearance command centers and tactical weapon storage perimeters.
Biomedical Research Laboratories & Isolation Wards: Providing completely hands-free door release overrides for medical personnel wearing full-body hazardous material suits and thick face shields.
Banking Operations & Currency Vaults: Safeguarding bulk financial storage infrastructures with mandatory multi-factor authentication (e.g., Iris + PIN + Smartcard).
Technical Performance MatrixEngineering Metric ParameterUltra-Secure Dual-Iris System NodeStandard Facial Recognition NodePrimary Biometric SensorsDual Near-Infrared (NIR) Sensory Camera MatricesAI Visible + Infrared Light CamerasBiometric Unique Variables Monitored$\ge 240$ Unique Structural Minutiae Points$\sim 100$ Geometric Face VectorsLocal User Template CapacityUp to 10,000 Users (Expandable to 50,000)Up to 30,000 ProfilesVerification Response Window$\le 0.5\text{ Seconds}$ typical response time$\le 0.2\text{ Seconds}$ typical response timeFalse Acceptance Rate (FAR)$\le 0.00001\%$ (Highest Industry Standard)$\le 0.0001\%$False Rejection Rate (FRR)$\le 0.1\%$$\le 0.1\%$Native Network InterfacesTCP/IP Ethernet (PoE+ 802.3at Enabled), RS-485TCP/IP Ethernet, Wi-FiControl Interfacing ProtocolOSDP V2 (Encrypted), Wiegand Input & OutputOSDP, Wiegand Out, Standard RelaysOn-Board Equipment Controls1 $\times$ Lock Relay, 1 $\times$ Door Contact, 1 $\times$ Exit Button1 $\times$ Lock Relay, 1 $\times$ Exit Button InputCompliance CertificationsCE / FCC / RoHS / NDAA Compliant / IEC 62471 Eye SafetyCE / FCC / RoHSStandard Procurement Package Components
Intelligent Multi-Eye Iris Recognition Edge Control Terminal Assembly
Heavy-Duty Zinc-Alloy Wall Mounting Backplate & Anchor Structural Kit
Pre-wired Input/Output Connection Circuit Ribbon Pigtail Harness
Hex-Key Enclosure Anti-Tamper Security Lock Screws and Driver Tool
Administrative Enrollment & Alignment Calibration Software Guide
Optional System Add-ons: Heavy-Duty Stainless Steel Pedestal Gooseneck Stands (for turnstile island mounting), Secure Remote Relay Boxes (to isolate lock control wiring inside secure ceilings), and 12V DC Backup Battery Power Enclosures (Sold Separately based on contract BOQ layouts)
