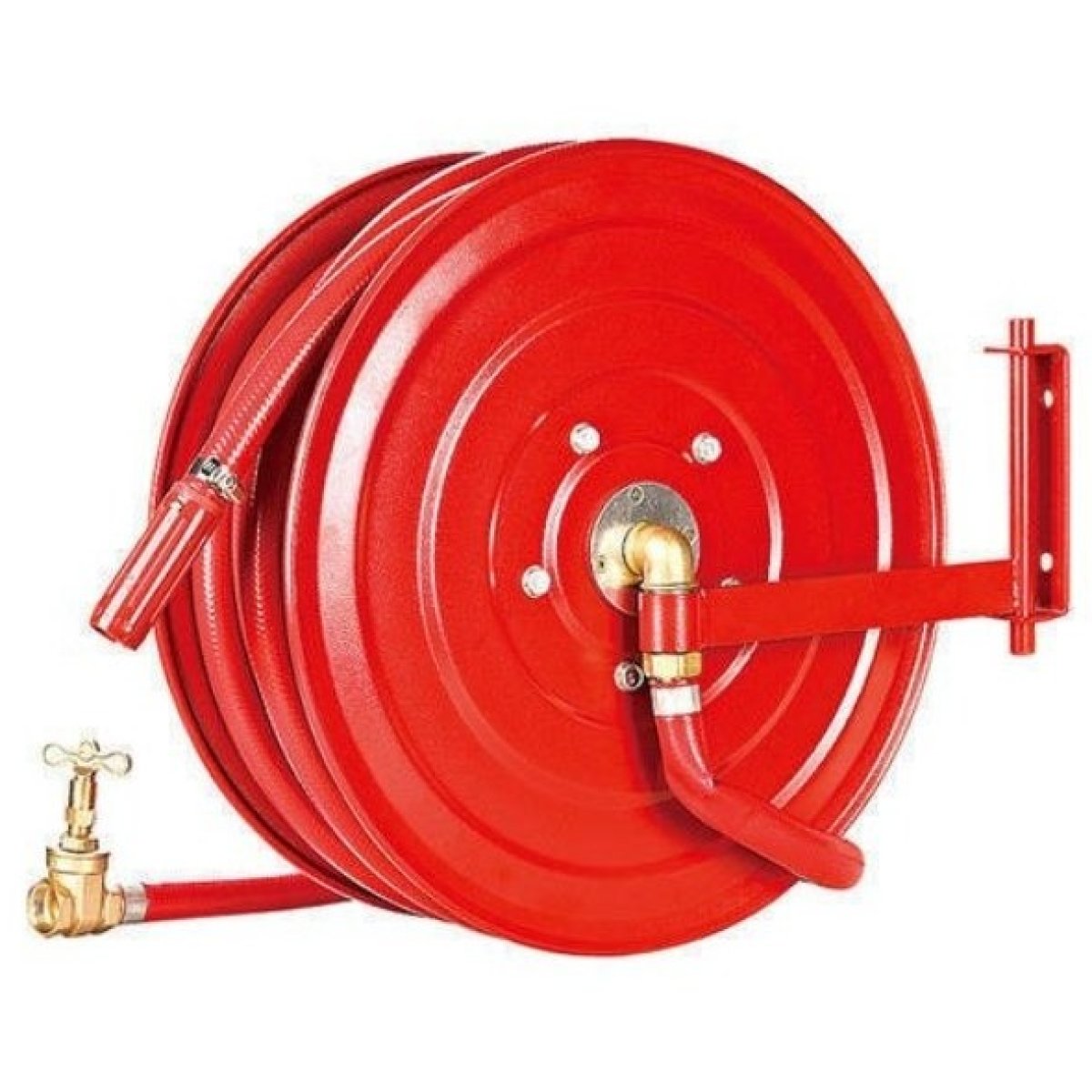

Fixed / Swinging Wall-Mounted Fire Hose Reel Drum (1" Hose x 30m) An industrial-grade, high-visibility visual life-safety asset engineered to provide building occupants with immediate, high-volume water access during early-stage Class A fire emergencies. Featuring a heavy-duty cold-rolled steel storage drum with a UV-stabilized red powder coat, an integrated solid-brass internal waterway hub, and 30 meters of high-density semi-rigid PVC hose, this reliable reel ensures smooth, tangle-free manual deployment under continuous main system pressure.
First-Line Tactical Fire Defense for Commercial Interiors
While high-capacity fire hoses are reserved for trained first responders, the Fire Hose Reel Drum is the frontline safety asset engineered for quick deployment by facility staff and building occupants. Strategically located along primary escape routes, inside elevator lobbies, and near high-risk zones, these systems remain permanently piped to the building's pressurized wet riser lines. This setup ensures an immediate, unyielding supply of water can be directed at a localized blaze within seconds, suppressing the fire before it scales out of control.
The assembly relies on a rugged, fluid-dynamic design. The drum consists of two thick steel side-plates that shield the hose core from environmental impacts and flattening. At the heart of the reel is a heavy-duty, leak-proof brass swivel joint that allows the drum to rotate smoothly as the operator pulls the hose in any direction. Unlike flat canvas hoses that must be completely rolled out to avoid water bottlenecks, this drum utilizes semi-rigid PVC tubing. This ensures a full, pressurized stream is delivered instantly, even if only a few meters of hose are unreeled from the drum core.
Key Performance Features
High-Impact Hydraulic Brass Hub: Features an internal solid brass waterway core with precision-machined seals, preventing internal dripping and structural oxidation during long idle periods.

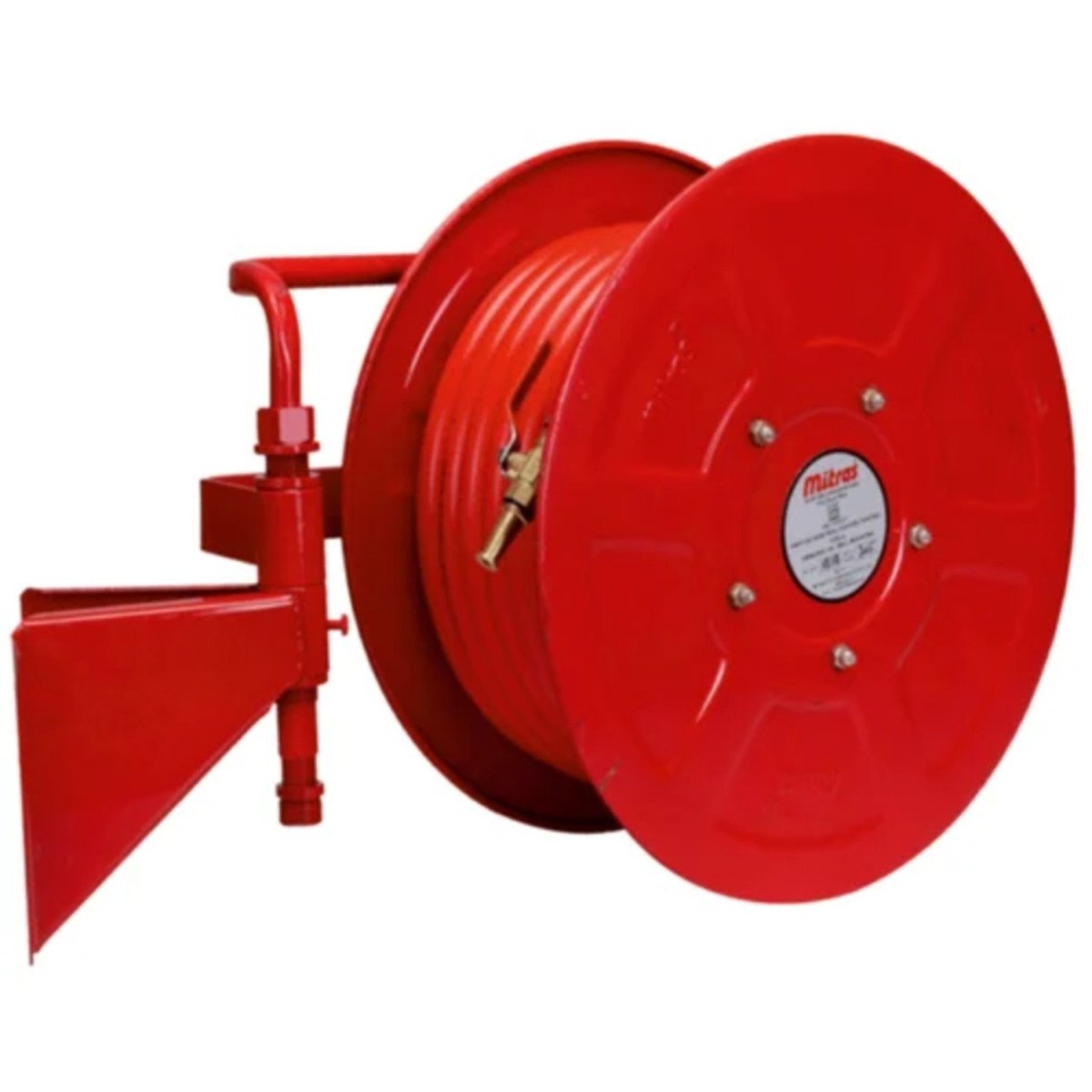

Versatile 180-Degree Swinging Arm: Outfitted with an integrated heavy-duty double-swivel arm configuration, allowing the entire drum assembly to swing outwards up to $180^{\circ}$ from the wall recess to track an operator's movement without binding.
Semi-Rigid Anti-Kink PVC Hose: Loaded with 30 meters ($100\text{ feet}$) of high-density, multi-layer braided PVC hose, certified to resist kinking, ozone cracking, and high-pressure expanding.
Intelligent Auto-Valve Integration (Optional): Available in an automatic format where the internal main water valve opens automatically after just three complete rotations of the drum, eliminating the need for a separate manual gate valve during a panic event.
All-Weather Polyester Powder Finish: Coated in an electrostatically applied, high-visibility Traffic Red (RAL 3000) polyester powder finish that resists scratches, impacts, and industrial chemical fumes.
Variable Jet/Spray Fog Nozzle: Includes a rugged nylon or solid brass shut-off nozzle that allows the operator to twist seamlessly between a tight, high-impact straight jet (for deep penetration) and a wide-angle fog spray (for rapid heat suppression).
Ideal Infrastructure Applications
Multi-Tier Shopping Malls & Public Atriums: Providing clear, accessible, and easy-to-use fire protection across busy public walking corridors.
Educational Campuses & Institutional Facilities: Deployed near laboratory blocks and gymnasiums to satisfy strict regional life-safety compliance codes.
High-Rise Corporate Office Complexes: Standard wall-cabinet installation alongside manual fire pull-stations within main emergency stairwells.
Technical Performance MatrixEngineering MetricManual Fixed ConfigurationAutomatic Swinging ConfigurationNominal Hose Inner Diameter$1"\text{ (25 mm)}$ or $3/4"\text{ (19 mm)}$$1"\text{ (25 mm)}$ or $3/4"\text{ (19 mm)}$Standard Hose Length30 Meters ($100\text{ ft}$) continuous30 Meters ($100\text{ ft}$) continuousMounting ArchitectureFixed Wall Bracket Profile$180^{\circ}\text{ Swinging Arm Pivot Layout}$Waterway Hub MaterialCorrosion-Resistant Solid BrassCorrosion-Resistant Solid BrassMaximum Working Pressure12 bar ($174\text{ PSI}$) continuous12 bar ($174\text{ PSI}$) continuousFactory Hydrostatic TestValidated up to 18 bar ($261\text{ PSI}$)Validated up to 18 bar ($261\text{ PSI}$)Drum Disk Compound1.2mm Cold-Rolled Carbon Steel1.2mm Cold-Rolled Carbon SteelSystem Code StandardsEngineered in accordance with EN 671-1 parametersStandard Procurement Package Components
Complete Fire Hose Reel Drum Assembly
30-Meter Semi-Rigid Braided Red PVC Fire Hose
$1"\text{ Adjustable Twist Jet/Spray/Shut-off Nozzle (Nylon or Brass)}$
Heavy-Duty Wall-Mounting Bracket Plate with Anchors
Flexible Interconnection Inlet Pipe (Connects the building riser to the drum hub)
Optional System Add-ons: Recessed Polycarbonate/Steel Storage Cabinets, Integrated Automatic Run Valves, and Photoluminescent Signage Display Tags (Sold Separately)
