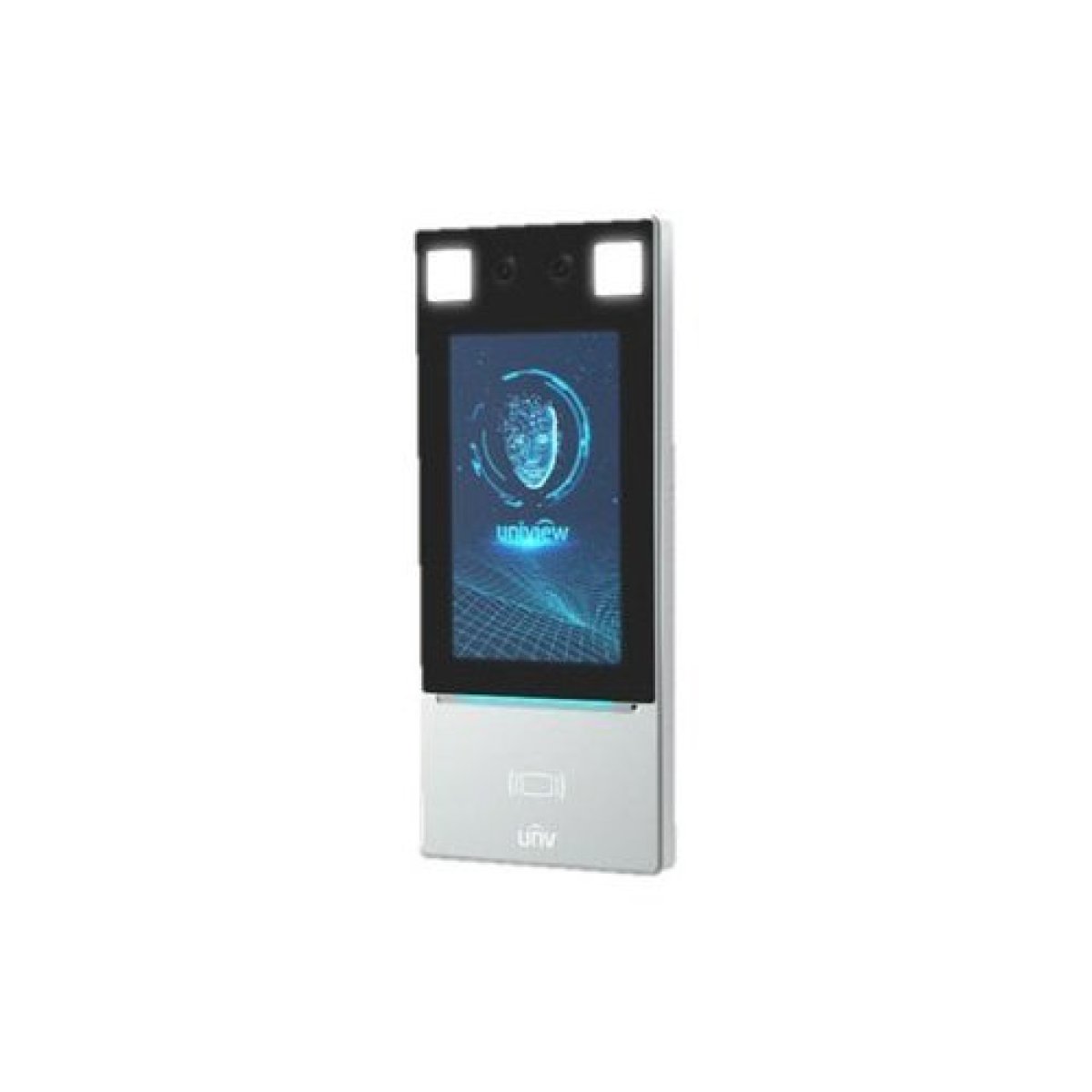

Intelligent Contactless AI Facial Recognition Access Control Terminal An advanced, edge-computing access control terminal utilizing deep-learning facial recognition algorithms to enforce rapid, hands-free perimeter security. Equipped with dual visible/infrared (IR) cameras for live-tissue verification, a high-performance neural processing unit (NPU), and a native IP-network architecture, this standalone terminal provides contactless authentication in under 0.2 seconds while natively integrating with third-party locks, turnstiles, and enterprise security management networks.
Contactless, Frictionless Identity Verification for Zero-Trust Perimeters
Traditional physical security barriers relying on physical keys, numerical PIN codes, or RFID proximity cards are inherently exposed to credential sharing, badge theft, and unauthorized tailgating. A Face Recognition Access System eliminates these vulnerabilities by converting an individual's unique facial structure into a non-transferable digital credential. By matching live biological markers against a secure, encrypted mathematical template, the system enforces strict physical identity verification without requiring any physical contact, delivering a completely frictionless entry experience.
The terminal operates via an edge-computing architecture powered by an integrated neural processing unit (NPU). Upon approach, the device scans the user across multiple biological vectors simultaneously:
Contactless Facial Geometric Profiling: Dual-lens camera matrices (visible and infrared light) map over 100 distinct facial landmarks, including the distance between eyes, nose-bridge height, and jawline contours.
Live-Tissue Verification: The infrared sensor captures subcutaneous thermal data and blood-flow reflections, ensuring the terminal cannot be fooled by high-resolution printed photographs, digital screen rollbacks, or 3D silicone masks.
Once the on-board processor matches the live matrix against the encrypted mathematical template stored in the local non-volatile database, it executes a secure authorization command. The internal lock-control relays drop power to electromagnetic locks or signal motorized speed gates to open, smoothly logging the user's name, timestamp, and entry portal location into the central security management console.
Key Performance Features
Instant Contactless Authentication: High-performance facial recognition matching engine identifies users in $\le 0.2\text{ seconds}$ at distances up to 2.5 meters ($8\text{ ft}$), preventing peak-hour foot traffic bottlenecking at main entrance turnstiles.
High-Purity Mask & Occlusion Accommodation: Advanced deep-learning algorithms successfully authenticate users wearing prescription glasses, hard hats, face masks, or experiencing changes in facial hair, reducing false rejections to under 0.1%.
Enterprise Hardware Interfacing: Outfitted with standard OSDP (Open Supervised Device Protocol) and Wiegand channels, enabling secure, encrypted, two-way communication between the biometric edge terminal and master third-party access control boards.
PoE+ Simplified Deployment: Supports Power over Ethernet (802.3at), allowing network communication and 12V DC lock-driving currents to run over a single Cat6 data cable, drastically reducing electrical installation overhead.
On-Board Standby Event Buffering: Houses a local non-volatile flash memory core capable of storing up to 30,000 user profiles and 150,000 transaction events offline, guaranteeing uninterrupted facility security even during complete corporate network outages.
Vandal-Proof Tamper Supervision: Built with a localized optical enclosure sensor. If an intruder attempts to forcibly rip the terminal off its wall plate, the unit instantly locks down its internal relay and sounds a priority alert across the central security desk.
Ideal Infrastructure Applications
Corporate Headquarter Main Turnstiles: Managing touchless high-volume entry and automated employee time-attendance tracking without manual check-in lines.
High-Security Banking & Data Centers: Enforcing multi-modal verification (e.g., Face + PIN + Smartcard) at server vault entry barriers.
Healthcare Facilities & Clean Rooms: Providing completely sterile, touch-free door releases for medical personnel carrying surgical trays.
Technical Performance MatrixEngineering Metric ParameterAI Facial Recognition Terminal ProfilePrimary Capture Sensor ArrayAI Visible + Infrared (IR) Dual-Lens Camera MatrixFace Template Storage CapacityUp to 30,000 Profiles (Natively on Edge Device)Transaction Event Buffer Memory150,000 Offline Local Events (Non-volatile Flash)Matching Speed Window$\le 0.2\text{ Seconds}$ (Contactless Target Capture)False Acceptance Rate (FAR)$\le 0.0001\%$False Rejection Rate (FRR)$\le 0.1\%$Built-in Smart Card Reader13.56 MHz Mifare DESFire / 125 kHz ProximityNetwork Interfaces Built-inTCP/IP Ethernet (PoE+ 802.3at), Wi-FiHardware Control InterfaceOSDP, Wiegand Input & Output, Lock Relay, Exit ButtonIngress/Vandal Armor RatingIP65 Weatherproof / IK04 Impact ProtectionCompliance CertificationsCE / FCC / RoHS / NDAA CompliantStandard Procurement Package Components
Intelligent AI Facial Recognition Entry Terminal Core Assembly
Heavy-Gauge Zinc-Alloy Wall Mounting Bracket Plate & Structural Anchors
Pre-wired Input/Output Circuit Ribbon Cable Pigtail Harness
Hex-Key Enclosure Anti-Tamper Locking Screw Set and Adjustment Driver
Administrative Enrollment Software Guide and Factory Quality Pass Certificate

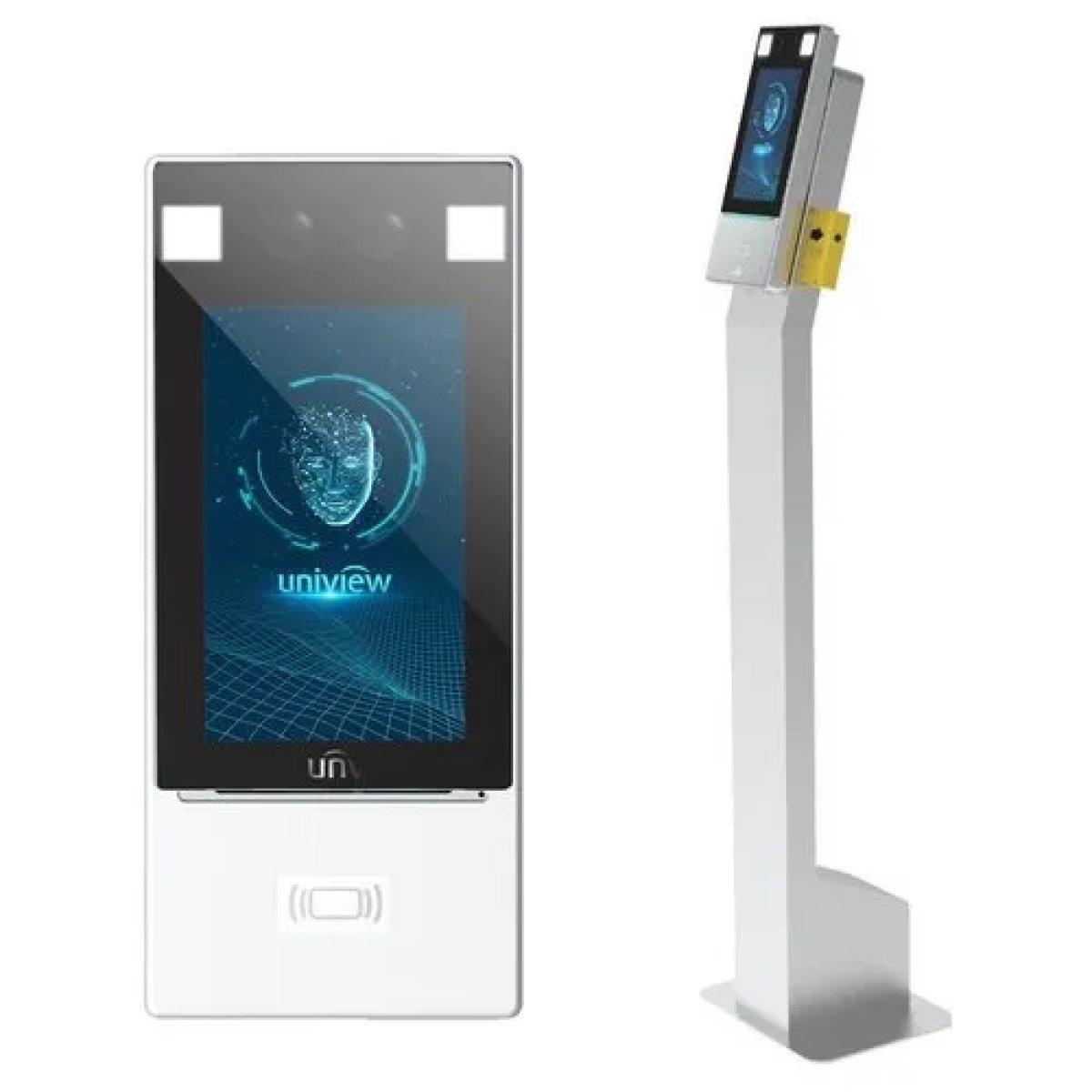

Optional System Add-ons: Heavy-Duty Stainless Steel Pedestal Gooseneck Stands (for turnstile island mounting), IP66 Tinted Polycarbonate Weather Enclosures, and Central Access Server Software License Expansion Packages (Sold Separately based on total facility node distribution)
