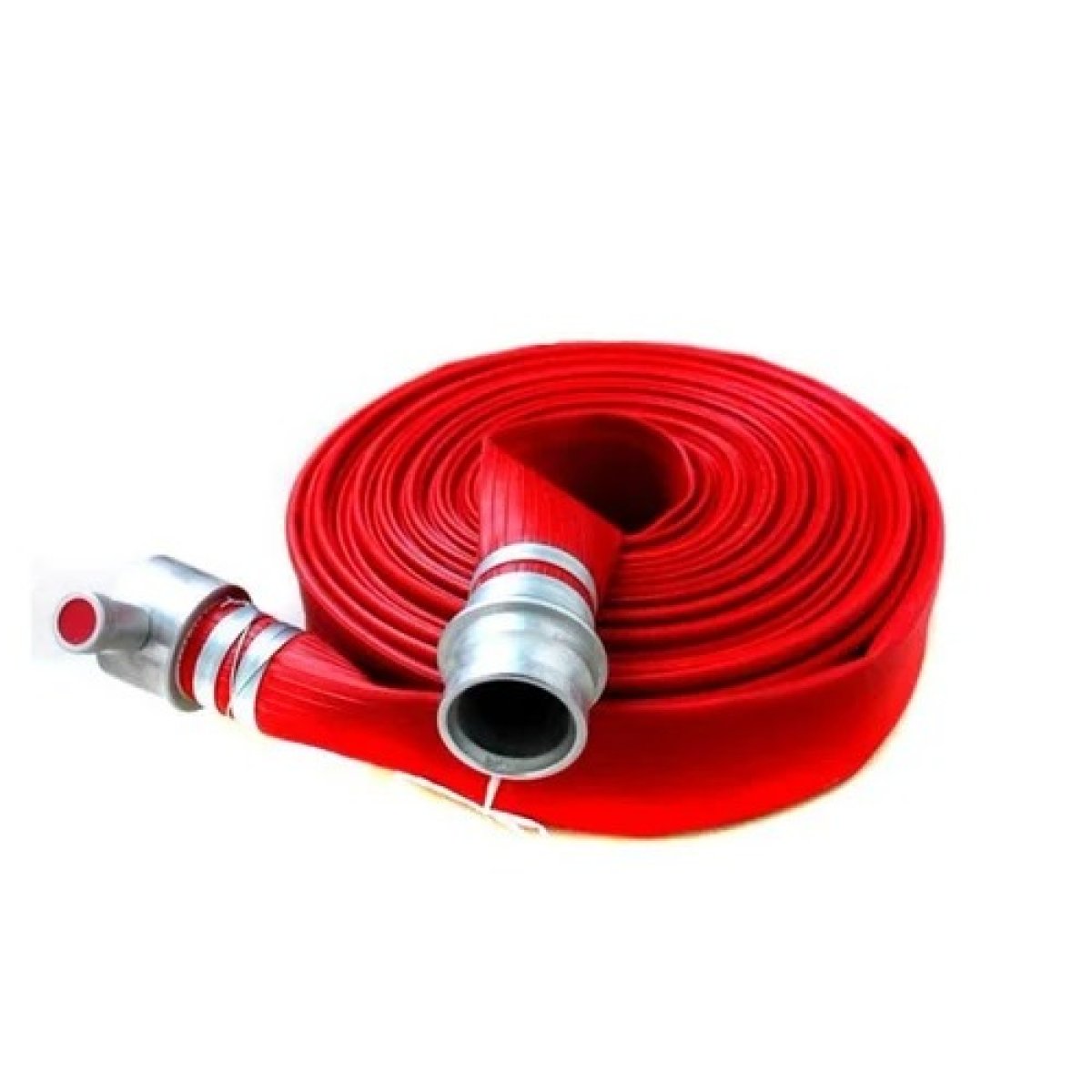

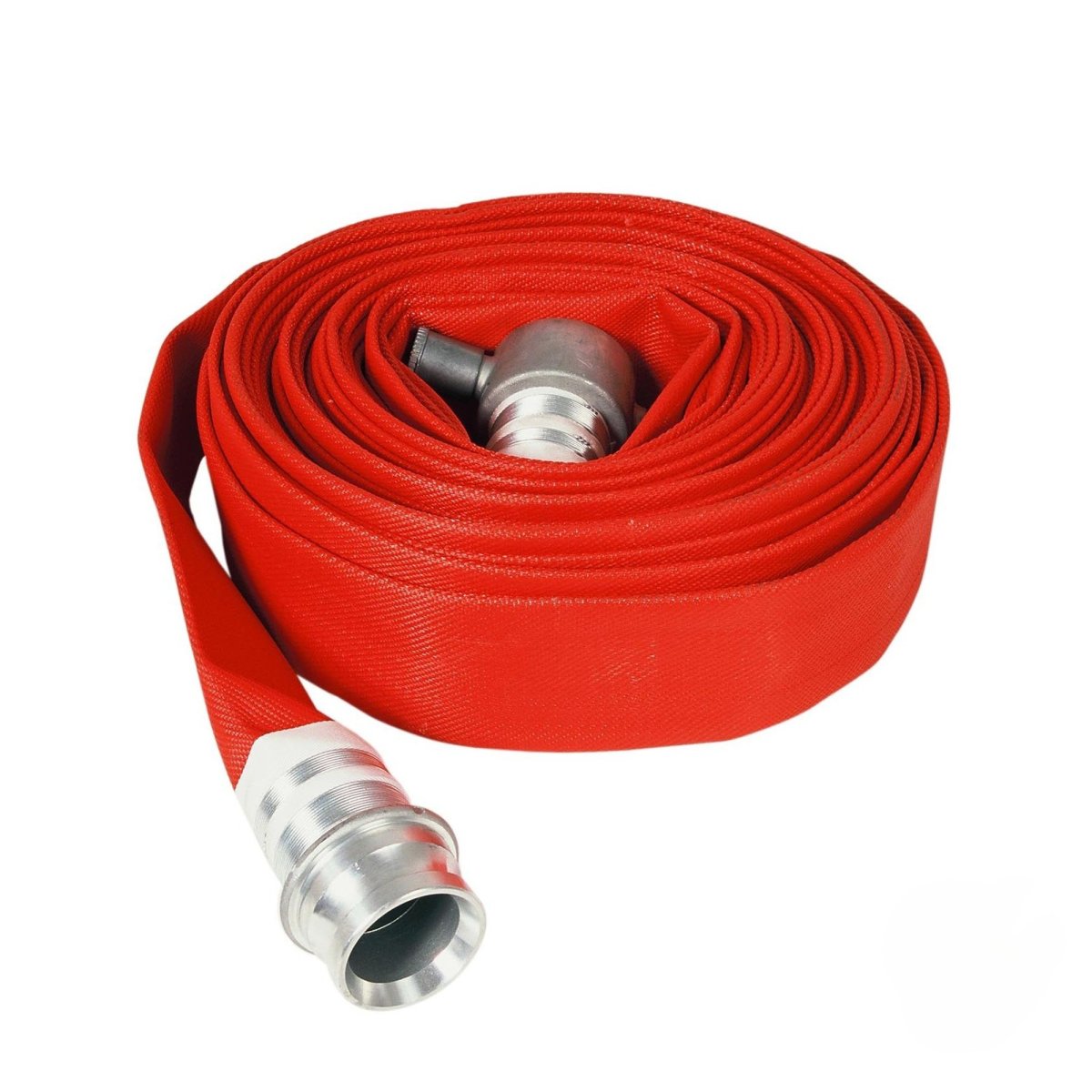

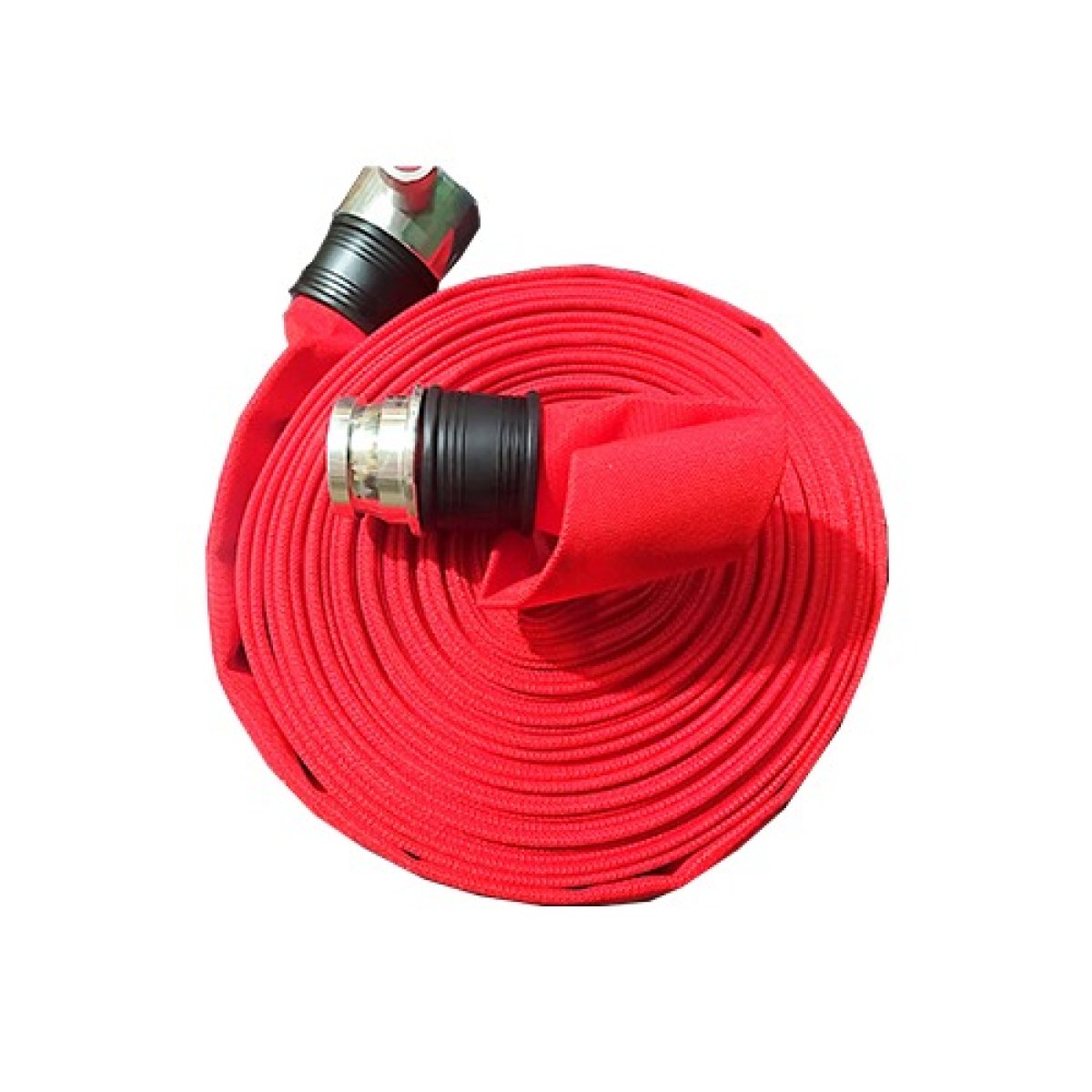

Double-Jacket Synthetic All-Weather Fire Hose Pipe (1.5" / 2.5") An industrial-tier, high-pressure fire hose engineered to deliver exceptional water volume under extreme structural firefighting and washdown conditions. Constructed with a seamless, age-resistant synthetic EPDM rubber inner lining mechanically bonded to a high-tensile, double-jacket polyester textile weave, this rugged hose guarantees total kink resistance, zero water percolation, and superior abrasion survival over rough concrete, gravel, and jagged debris.
High-Pressure Advanced Fluid Dynamics for Strategic Fire Mitigation
During an advanced structural or industrial fire event, tactical hand lines are subjected to extreme physical punishment. Dragged over sharp brick fragments, pulled through jagged window frames, exposed to radiant heat, and twisted around concrete corners, a standard utility hose would instantly burst, putting responders in immediate danger. Our Premium Fire Hose Pipe series is engineered to absorb intense mechanical abuse while maintaining maximum fluid velocity.
The hose utilizes a dual-layer architectural blueprint. The inner core consists of a single-piece, ultra-smooth extruded rubber lining that minimizes friction loss, allowing fire pumpers to push high-velocity streams up to the nozzle without significant pressure drops. This liner is protected by a tightly woven outer jacket made of high-tenacity filament polyester yarn. This double-jacket weave acts as a mechanical armor shield, providing high burst-pressure thresholds and preventing punctures or cuts even when scraped against sharp metal edges under full working pressure.
Key Performance Features
High-Tenacity Double-Jacket Armor: Features a dual-layer woven polyester jacket that doubles the abrasion resistance and working pressure limits compared to single-jacket variants, entirely eliminating outer structural tearing.
Ultra-Low Friction EPDM Inner Core: The vulcanized rubber liner is engineered to remain perfectly smooth and flexible over its entire operational lifespan, preventing ozone cracking, rotting, and internal pressure bottlenecks.
Instant Quick-Connect Couplings: Outfitted with factory-swaged, heavy-duty $2.5"\text{ (65 mm) Instantaneous John Morris (BS 336) bindings}$ or $1.5"\text{/2.5\" Threaded NH/NST couplings}$, enabling secure, leak-proof hose extensions in seconds.
All-Weather Thermal Hardening: Remains fully pliable and operational across extreme temperature ranges, preventing freezing or stiffness in sub-zero environments down to $-30^{\circ}\text{C}$ and resisting degradation up to $+70^{\circ}\text{C}$.
Mildew and Rot Immunity: The 100% synthetic textile fibers require zero drying time after deployment, allowing the hose to be re-rolled and stored wet inside cabinets without risking mildew rot or structural weakening.
High Hydrostatic Safety Multipliers: Validated under intense factory quality-control protocols, boasting a service test pressure of 21 to 25 bar and a catastrophic burst rating exceeding 50 bar.
Ideal Infrastructure Applications
Internal Fire Hose Cabinets: Coiled onto manual swinging reels or accordion racks inside commercial towers to provide immediate fire defense for trained building personnel.
Industrial & Marine Washdowns: Serving as high-pressure washdown lines on offshore oil rigs, chemical processing decks, and maritime shipping hulls where salt-water resistance is mandatory.
Municipal Staging Perimeters: Functioning as tactical attack hand lines deployed from fire trucks during advanced structural fire suppression efforts.
Technical Performance MatrixEngineering MetricStandard 1.5" Tactical HoseIndustrial 2.5" Main Supply HoseNominal Inner Diameter$1.5"\text{ (38 mm)}$$2.5"\text{ (65 mm)}$Standard Delivery Length15 Meters ($50\text{ ft}$) / 30 Meters ($100\text{ ft}$)15 Meters ($50\text{ ft}$) / 30 Meters ($100\text{ ft}$)Jacket Blueprint MatrixSingle or Double-Jacket Woven PolyesterDouble-Jacket High-Tenacity PolyesterInner Lining CompoundSeamless Vulcanized EPDM Rubber / PUSeamless Vulcanized EPDM Rubber / PUStandard Working Pressure16 bar ($232\text{ PSI}$)16 bar ($232\text{ PSI}$)Factory Proof Test Rating24 bar ($348\text{ PSI}$)24 bar ($348\text{ PSI}$)Minimum Burst Threshold50 bar ($725\text{ PSI}$)50 bar ($725\text{ PSI}$)Standard Coupling OptionsThreaded NH / Rocker Lug BrassInstantaneous BS 336 Gunmetal / AluminumStandard Procurement Package Components
Complete Pre-Coupled Fire Hose Pipe Assembly
Double-Band Heavy-Duty Copper Wire Binding / Aluminum Forged Ferrule Swages
Pre-installed Neoprene Moisture Seal Washers
Optional System Add-ons: Variable Fog/Straight-Stream Spray Nozzles, Polycarbonate Storage Cabinets, and Heavy-Duty Canvas Hose Jackets (Sold Separately)
