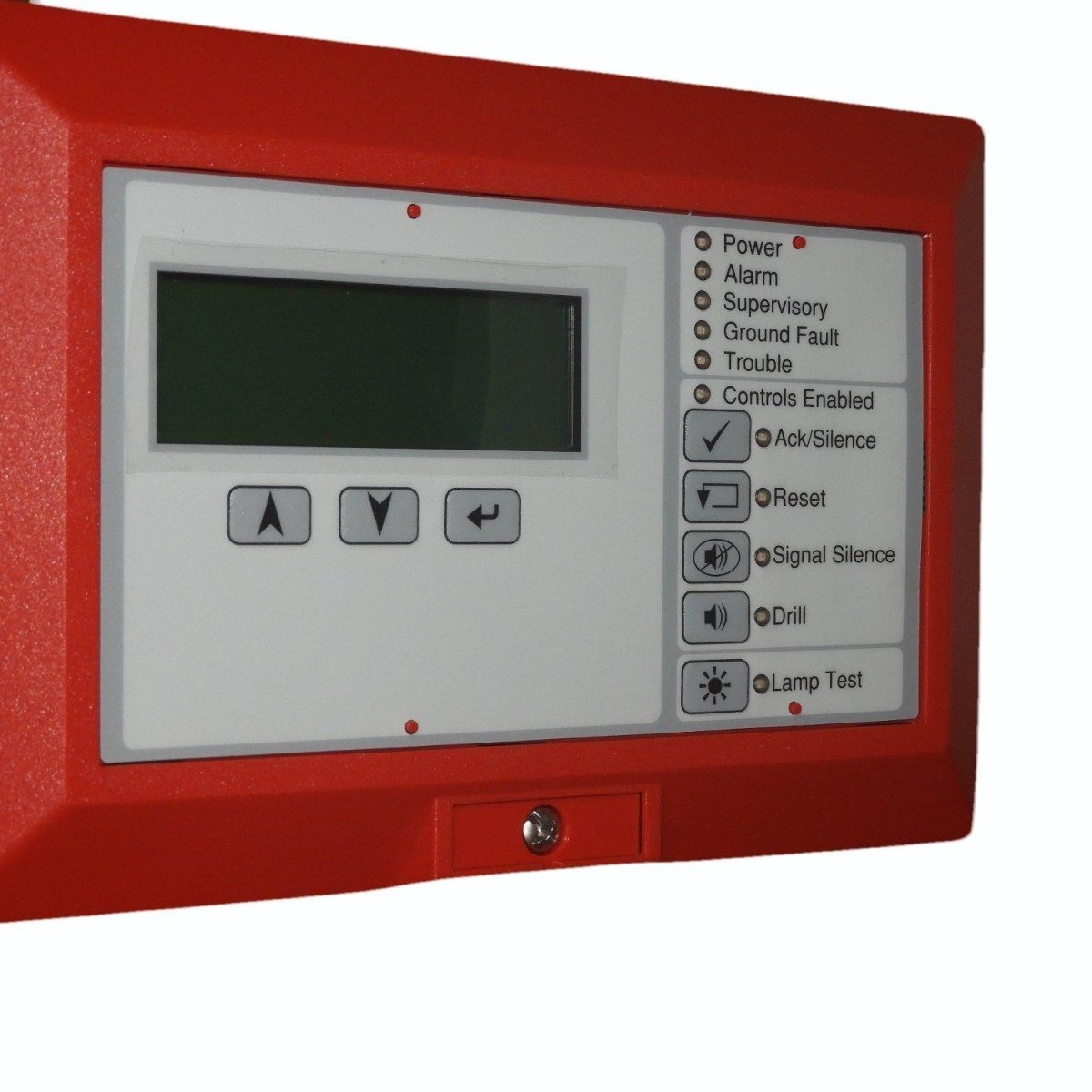

Intelligent Addressable Remote Fire Alarm Repeater Panel (LCD Annunciator) A high-reliability remote monitoring and control console engineered to mimic the real-time display interface of a building's primary Fire Alarm Control Panel (FACP). Interconnected via a supervised RS-485 network loop or Ethernet backbone, this low-profile repeater provides security personnel, building managers, and arriving emergency responders with instant visual tracking of system alarms, supervisory alerts, and wiring faults, featuring critical command override controls like system reset, signal silence, and drill initiation.
The Strategic Forward Command Hub for Emergency Operations
In modern commercial complexes, high-rise towers, and vast industrial processing facilities, the primary Fire Alarm Control Panel (FACP) is often installed deep within a secure, isolated area—such as a basement electrical room, utility riser vault, or back-of-house service corridor. While this location protects the core life-safety microprocessors from unauthorized tampering, it creates a serious tactical problem during an active emergency. Arriving fire department personnel and facility security teams cannot afford to lose precious minutes navigating dark corridors or basement stairwells just to read which smoke detector tripped.
A Fire Alarm Repeater Panel (also known as a Remote Annunciator) solves this operational challenge by duplicating the FACP’s display and user controls at key facility entry points. Typically mounted in the main ground-floor lobby, a 24-hour security desk, or a designated fire command center, the repeater functions as a remote terminal.
It connects to the master panel using a high-speed, electrically supervised data bus (typically RS-485 or Ethernet). When a sensor triggers anywhere in the facility, the repeater immediately replicates the exact text description, floor level, and device address on its backlit LCD screen, enabling emergency crews to execute rapid, targeted interventions the moment they step through the front doors.
Key Tactical Control Overrides
Beyond serving as a passive display monitor, an intelligent repeater panel is outfitted with tactical push-buttons that allow authorized operators to manage localized system responses:
System Reset: Allows responders to clear latched fire alarms and return the entire network to standard standby mode once an emergency has been resolved or a false alarm is identified.
Signal Silence: Temporarily deactivates overhead sirens, bells, and strobes to let emergency crews communicate clearly during an inspection, while keeping the panel in an active alarm state.
Acknowledge (ACK): Silences the internal localized buzzer on the repeater panel itself, confirming to the system that an operator has read the active fault or alarm description.
Fire Drill Initiation: Manually activates all notification appliance circuits (NACs) across the property to conduct mandatory facility evacuation tests without needing access to the main engineering plant room.
Key Performance Features
Exact Alpha-Numeric Display Mirroring: Equipped with a high-contrast, multi-line backlit LCD screen (typically $4\times40$ characters or a full graphic touchscreen) that copies the master FACP interface word-for-word, preventing operator confusion.
Hierarchical Security Passcodes/Keys: Features an integrated physical key-switch lock or alphanumeric passcode matrix to restrict system override privileges strictly to fire marshals and authorized security personnel.
Robust Loop Supervision Network: The communication link between the master panel and the repeater is continuously supervised. If an infrastructure wire cuts or experiences ground-fault shorting, both panels immediately sound an alert and pinpoint the exact fault location.
Low-Profile Architectural Enclosure: Available in sleek semi-flush or surface-mount configurations, designed to blend cleanly into high-end corporate lobby walls without creating a bulky footprint.
Multi-Drop Networking Capacity: Supports daisy-chaining up to 16 or 32 remote repeater panels onto a single FACP host network, allowing large facilities to secure multiple entrance gates and security checkpoints simultaneously.
Ideal Infrastructure Applications
Main Building Entrance Lobbies: Positioned right inside the primary entrance doors to serve as the immediate destination point for arriving municipal fire trucks.
24/7 Security Control Rooms: Providing continuous, active monitoring alongside CCTV surveillance monitors for integrated facility management.
Nurses' Stations & Hospital Units: Deployed across healthcare floor junctions to give medical staff immediate, localized notice of fire zones without requiring them to leave patient wards.
Technical Performance MatrixEngineering Metric ParameterIntelligent Addressable RepeaterStandard LED Annunciator ProfileDisplay Interface SystemBacklit Alphanumeric LCD / Graphic TouchMatrix Array of Fixed LED Status LightsCommunication Bus LinkSupervised RS-485 / Twisted Pair / EthernetHardwired Zone-per-LED / Proprietary BusMaximum Network DistanceUp to 1,200 Meters ($4,000\text{ ft}$) over RS-485Up to 1,200 Meters ($4,000\text{ ft}$) over RS-485System Override ControlsReset, Silence, Acknowledge, DrillAcknowledge and Lamp Test OnlyInput Operating Voltage24V DC Regulated (Supplied by FACP or Aux)24V DC Regulated (Supplied by FACP or Aux)Standby Current Load$\le 100\text{ mA}$ average baseline$\le 40\text{ mA}$ typical (low power draw)Access Protection InterfacePhysical Key Lock and Multi-Level PasscodesPhysical Key Lock Switch OnlyCompliance CertificationsUL 864 Listed (Control Units) / NFPA 72UL 864 Listed / CSFM ApprovedStandard Procurement Package Components
Intelligent Addressable Remote Repeater Panel Base Unit
Heavy-Duty Stamped-Steel Surface or Semi-Flush Mounting Enclosure
Set of Master Access Control Physical Override Keys
Factory Wiring Schematic, Bus Termination Resistors, and Commissioning Guide
Optional System Add-ons: Remote Auxiliary Power Supply Units (for extra long wire runs), Fiber-Optic Network Converter Modules, and Clear Lexan Vandal-Proof Outer Shield Doors (Sold Separately based on project design BOQ constraints)
